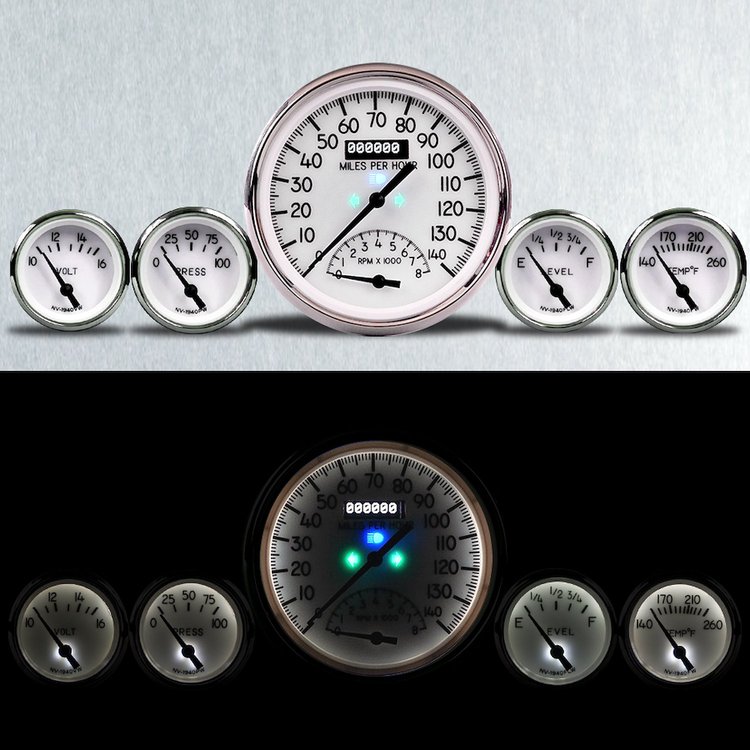

New Vintage USA 40595-03 Features:

59-60 Chevy Impala kits from NVU offer a clean way to update the original gauges in technology and style! Kits offer a speedometer/tachometer gauge with incorporated turn signals and high beam, rugged aircore Fuel (0-30 Ω original factory match),Temperature, pressure and voltage gauges. Instruments install easily in the factory dash with provided brackets and mounting.

Inspired by military sets, we have duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect. The mechanical speedometer features a trip odometer with reset switch. The patented bi-torque 2-1/16” gauges offer the modern technology behind the scenes to provide accurate readings. The New Vintage 1940 Series gauges are made in the USA and feature our 5-year warranty.

Kit includes:

4-3/8 Speedo/Tach combination gauge

2-1/16" Fuel gauge 0-30 Ω factory match

2-1/16" Water temperature gauge

2-1/16" Oil pressure gauge

2-1/16" Voltmeter

Gauge mounting back clamps and hardware

Programming button

1 ea Color-coded AMP harnesses

Bushing kit 1/2", 3/8", 1/4"

Oil pressure sender 240-33Ω 1/8-27 NPT thread

Temperature sender NVU high-match 1/8-27 NPT thread

** Speed sender may be required, not included, check your application

• Speedometer Gauge Included: Yes
• Tachometer Gauge Included: Yes
• Water Temperature Gauge Included: Yes
• Oil Pressure Gauge Included: Yes
• Voltage Gauge Included: Yes
• Fuel Gauge Range: Yes
• Fuel Sender Included: No
• Bezel Included: No
• Bracket Included: Yes
• Speed Sender Included: No
• Temperature Sender Included: Yes
• Oil Pressure Sender Included: Yes
• Wiring Harness Included: Yes
• Indicator Lamps: Yes
• Gauge Style: Analog
• Gauge Dial Color: White
• Gauge Number Color: Black
• Gauge Pointer Color: Black
• Bezel Finish: Stainless
• Gauge Lens: Domed
