GM Specific Fit Headers 1982-1992 2WD Blazer, Jimmy, S10 & S15
InfoVehicle Info Needed
PATRIOT EXHAUSTPART NUMBER: 737-H8036-1

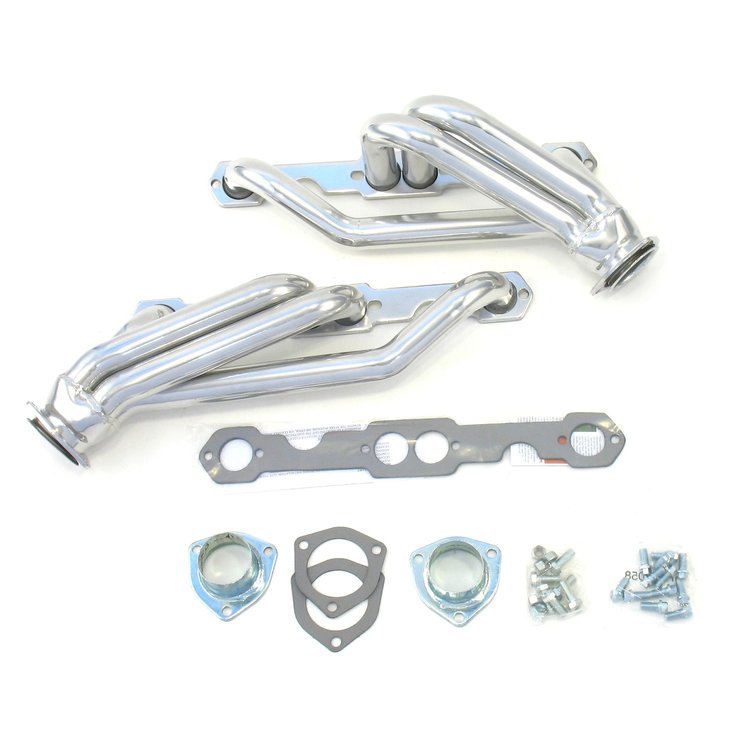

GM Specific Fit Headers 1982-1992 2WD Blazer, Jimmy, S10 & S15

$48297$536.63You Save$53.66
2 left in stock
Lowest PriceLowest Price Guarantee

GM Truck Specific Fit Headers
GM Specific Fit Headers
  • 1982-1992 2WD Blazer, Jimmy, S10 & S15
  • 265-400 Small Block Engine Swap Header
  • 1-1/2'' Primary Tubes
  • 2-1/2'' Collector
  • Round Port Shape
  • Metallic Ceramic Coated

    Fits:
    • 1982-1993 2WD Blazer, Jummy, S10, S15 (Engine Swap)
    Notes:
    • Will not fit angle plug heads.
    • Shorter design for maximum ground clearance on cars lowered up to 4'.
    • Fits with most engine swap kits.

    AutomaticManual
    A/CP/BP/SColumnFloorColumnFloor
    YYYN68NN

    68 - Fits Turbo 350 automatic transmissions with floor shifter only.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeHeader
    BrandPATRIOT EXHAUST
    Package Height7.3
    Package Width17.5
    Package Length20.8
    Weight16.415 PG
    Part CategoryPerformance Parts
    PositionN/A
    Header FinishSilver ceramic coated
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Brake SystemPower
    Collector Attachment3-bolt flange
    Flange StyleStandard
    TunedNo
    Collector Diameter2.5 in (63.5 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    Primary Tube Gauge18-gauge
    Header StyleShorty
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter1.5 in (38.1 mm)
    Vendor Part NumberH8036-1
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
