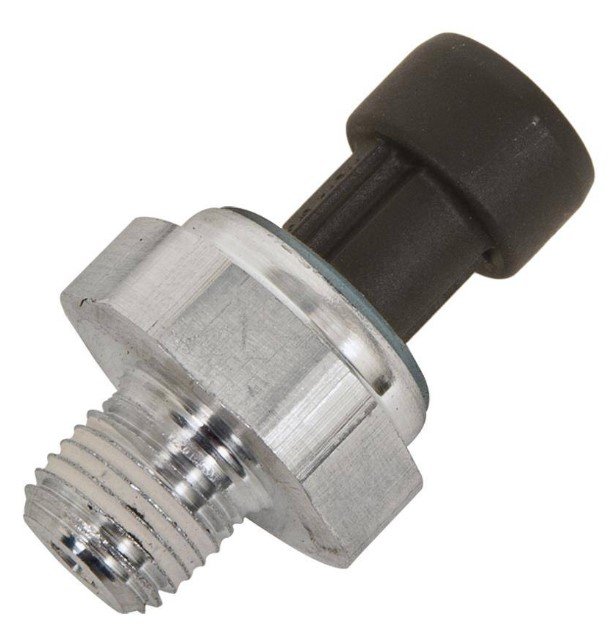

High-Performance Pressure Sensor [250 psi]
InfoVehicle Info Needed
WALKER PRODUCTSPART NUMBER: 948-256-8005

High-Performance Pressure Sensor [250 psi]

$9291
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

FT600 Extreme Performance ECU and Dashboard (w/o Harness)

FUELTECH

FT600 Extreme Performance ECU and Dashboard (w/o Harness)

Part Number : 382-3010004009
$2,99900
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2974
$1599$22.09
You Save$6.10
Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
10799 Contact Cleaner, Non-Chlorinated

LUCAS OIL

10799 Contact Cleaner, Non-Chlorinated

Part Number : 639-10799
$1017$10.99
You Save$0.82

0-250 psi
High-Performance Pressure Sensor
  • 0-250 psi
  • 1/8 in. NPT
  • 3-Pin Connector
  • 22 mm Hex
  • Atmospheric Pressure Vent
  • Vibration & Temperature Resistant
  • Waterproof & Dustproof Membrane
  • Stainless Steel
  • Sold Individually

    Connector Pin Diagram

    Walker Products 256-8005 High-Performance Pressure Sensor:

    • Industry-standard 3-pin connector is compatible with OEM, aftermarket, and performance ECUs
    • Compatible with performance and aftermarket data-acquisition devices, gauges, and dashes
    • 0.5 volts to 4.5 volts
    • Highest EMT rating eliminates interference with other electrical components
    • Stainless steel pressure port improves sealing
    • Accurate and reliable performance



      • Pressure Sensors that Withstand Everything from the Street to Racing

      Walker Products High-Performance Pressure Sensors lead the industry in accuracy and longevity even in extreme conditions.

    Part TypePressure Sender
    Product LineWalker Products High-Performance Pressure Sensors
    BrandWALKER PRODUCTS
    Package Height1.5
    Package Width2.25
    Package Length3.0
    Weight0.09 PG
    Wiring Harness IncludedNo
    Sending Unit TypePressure
    Terminal Type3 Pin Wire Connector
    Sending Unit StyleThread-in
    QuantitySold individually
    Sending Unit Thread Size1/8-27 NPT
    Range0-250 psi
    Vendor Part Number256-8005
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
