Made in USA

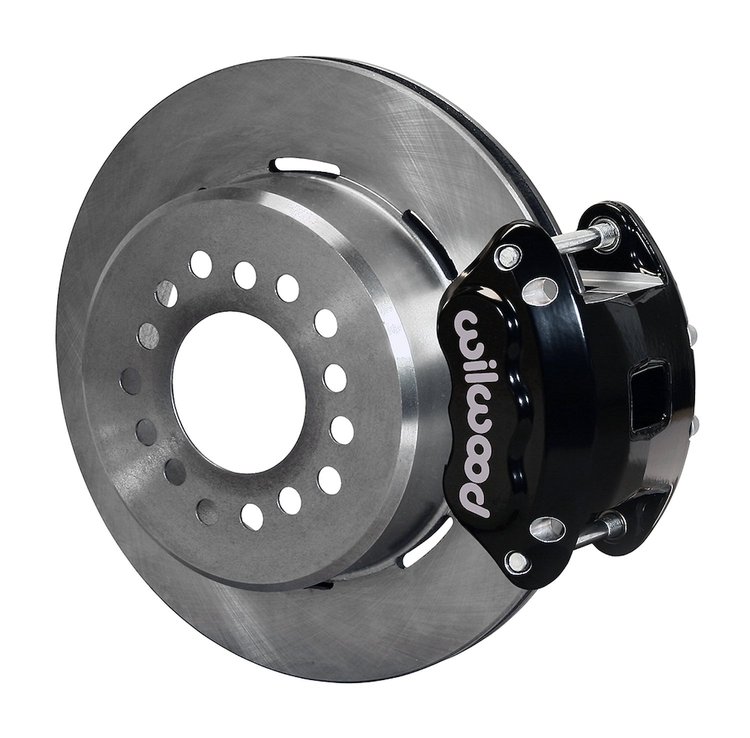

140-15641 D154 Rear Parking Brake Kit
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-15641

140-15641 D154 Rear Parking Brake Kit

$98744
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

    D154 Rear Parking Brake Kit
  • Disc/Drum
  • D154
  • 12 Bolt Chevy
  • 2.75/ 2.81 Offset
  • 1Pc Rotor
  • Front Mt

    Wilwood 140-15641 Features:

    D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height13.88
Package Width13.88
Package Length16.62
Weight59.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity2
Hub IncludedNo
Solid Or Vented Type RotorVented
Caliper TypeFloating
Caliper ColorBlack
Brake Booster IncludedNo
QuantitySold as a kit.
Mounting Hardware IncludedYes
Rotor Outside Diameter12.19
Rotor Thickness0.81
Length Pintle RetrievedRear Kits
Spindle IncludedNo
Bolt Circle Diameter5 x 4.5, 5 x 4.75, 5 x 5
Flange Type12 Bolt
Component TypeRear Brake Kits - Street Performance
Brake TypeDisc
Minimum Wheel Diameter16
Brake Lines IncludedNo
Piston MaterialStainless
Surface TypePlain Face
Master Cylinder IncludedNo
Part FitmentDirect Fit
Caliper FinishBlack Powder Coat
Rotor MaterialIron
Vendor Part Number140-15641
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
