Vehicle Info NeededWILWOODPART NUMBER: 950-140-15842-R

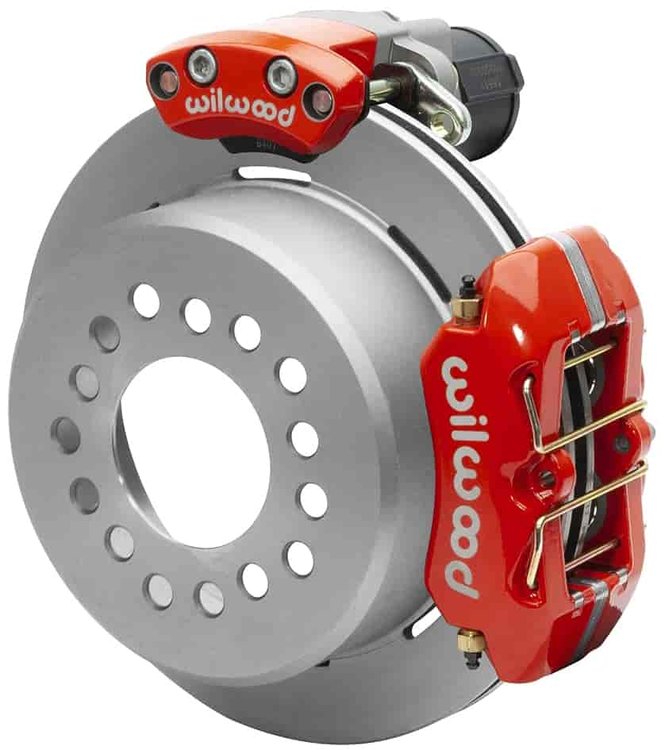

Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit for Ford 9 Inch
$2,18555
Ships on 09/14/2026
Lowest Price GuaranteeFord
Forged Dynapro Low-Profile Rear Electronic Parking Brake KitRear End Axle: Ford 9 in. Big Ford New Style Flange Axle Offset: 2.500 in . 4 Piston Caliper (Red Powdercoat) 11 in. Solid Vented Rotor 14 in. Minimum Wheel Diameter
How to Measure Axle Offset & Rear End Housing Flange
Features:
- EPB (electronic parking brake) system requires zero cables or actuators
- 2400 plus pounds of clamping force with zero voltage or amp draw after actuated
- Kits designed to use 5 x 4.500 in., 5 x 4.750 in. or 5 x 5.000 in. bolt patterns
- Includes BP-10 compound pads for superior grip, longer wear, and lower dust
Part TypeBrake Conversion Kit
BrandWILWOOD
Package Height11.5
Package Width24.0
Package Length24.0
Weight56.0 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Rear Caliper FinishRed powdercoated
Rear Rotor Thickness0.81 in (20.6 mm)
Minimum Recommended Wheel Diameter14 in (355.6 mm)
Parking Brake ProvisionYes
Rear Rotor Diameter11.00 in./279.4mm
Rear Caliper MaterialBillet aluminum
Master Cylinder IncludedNo
Brackets IncludedYes
Rear Rotor IncludedYes
PositionRear
Brake Pads IncludedYes
Rear Rotor StyleSolid surface
Brake Booster IncludedNo
Disc Brake Caliper (Rear) Piston QuantityFour
QuantitySold as a kit
Mounting Hardware IncludedYes
Offset2.5 in (63.5 mm)
Disc Brake Kit TypeHeavy-duty
Caliper SeriesDynapro Low Profile
Brake Lines IncludedNo
Part FitmentSemi Universal
Parking Brake StyleElectronic Parking Brake
Brake Pad MaterialBP-10 Compound
Rear Caliper IncludedYes
Vendor Part Number140-15842-R
Package Qty1
Package TypeEA
