- Dodge Dart, Scamp
- Plymouth Valiant, Duster
Items You Need
Mopar A-Body

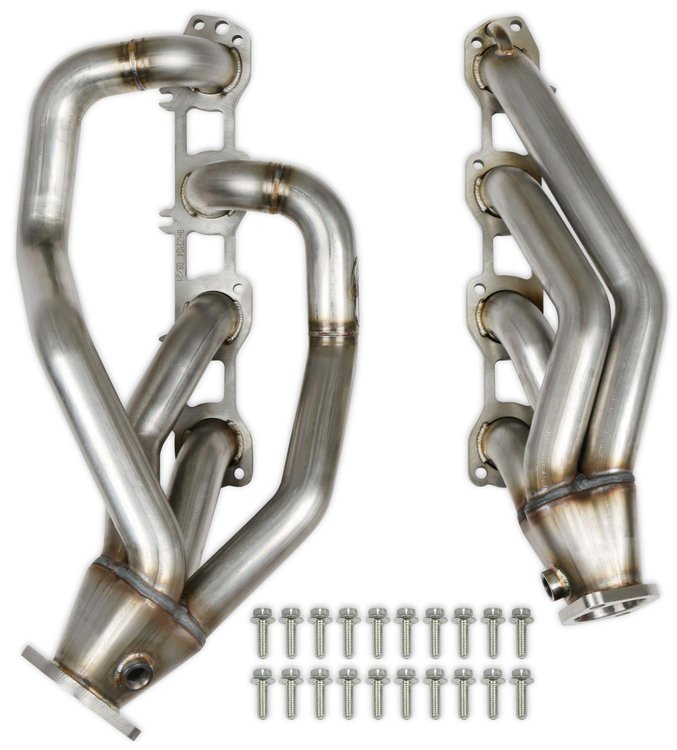

Hooker Blackheart Gen III Hemi Shorty Swap Headers BHS23104:
- 1973-1976 Mopar A-Body Fitment Requirements:
- Engine mounts BHS571 (sold separately)
- Works with a torsion bar suspension
- Transmission cross member BHS572 (sold separately) when using Chrysler 727, Chrysler/Mercedes NAG1, or Tremec TKX (GM style) 673-TCET17805 (sold separately) transmissions
- Crossmember/torsion bar support BHS588 (sold separately) required for TKX transmission
- Transmission mount adapter BHS573 (sold separately) for use with 727 or TKX transmissions
- JEGS transmission mount 555-61820 or 555-61821 (each sold separately) or equivalent
- Modifications to the steering column for manual steering boxes
- Will not fit factory power steering boxes
- Borgeson power steering box 153-800126 or 153-800127 (each sold separately)
- Power steering hard line kit 510-198-231 (sold separately) for Borgeson power steering applications
- Borgeson U-Joint steering coupler 153-013464 for a manual steering box or a 153-036425 (sold separately) for a power steering box
- Flexible transmission dipstick such as Lokar 625-ED-5015 (sold separately) or equivalent
- Small body Challenger Hell Cat starter is recommended and will provide extra clearance
- Right-hand starter applications require modification to the idler arm
- 2010 Chrysler 300 AWD starter, bell housing, and dust shield required for left-hand starter
- 2003-2008 square port 5.7L Engines require JEGS 555-211152 header gasket set (sold separately) or equivalent
- Current D-port engines require JBA 578-063-1965 header gasket set (sold separately) or equivalent
- 1 7/8 in. primary tubes are made from 18 gauge 304 stainless steel and hand-welded
- 2 1/2 in. Formed collectors come complete with 2-bolt 3/8 in. flanges and oxygen sensor (O2) bungs
- Includes header bolts and detailed instructions
Emissions:
This product is engineered to facilitate the installation of a later model, emissions-friendly engine into a vintage/classic vehicle. Federal guidelines indicate that an engine swap is allowable if one or more of the following conditions apply.
- If there is a reasonable basis for knowing that emissions are not adversely affected as described in the EPA Tampering Policy dated November 23rd, 2020
- The resulting vehicle is identical (with regard to all emissions-related parts, engine design parameters, and engine calibrations) to a certified configuration of the same or newer model year as the vehicle chassis
- The vehicle is an uncontrolled vehicle
- Vehicles that were manufactured before emission control regulations took effect are called uncontrolled vehicles
- Aftermarket parts regulations and anti-tampering laws do not apply to these vehicles
- An EO legal engine swap kit is utilized (such as a GM EROD)
- The vehicle is being used for Competition Use Only
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street
