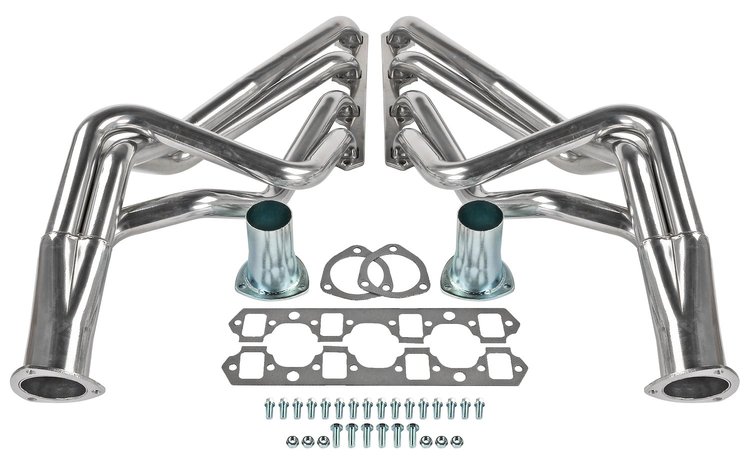

Metallic Ceramic Coated Long Tube Headers 1964-1973 Small Block Ford Passenger Car (260-302W c.i.)
555-300130
Product Q&A
View Now
Click image to zoom
| Ratings |
|---|
| Price |
| Brand |
Small Block Ford
JEGS 555-300130 Metallic Ceramic Coated Long Tube Features:
- 1-5/8 in. Primary tubes with 3 in. Collectors and 2 1/2 in. Reducers for Small Block Ford engines including 260, 289, 302, and others based on the popular platform
- Fits the following: 1964-1973 Mustang/Cougar, 1966-1973 Fairlane, Torino/Cyclone, Montego, 1966-1973 Falcon, 1966-1969 Comet, and 1966-1973 Ranchero
- Ceramic coated finish for great looks and long life
- Includes gaskets, reducers, & hardware to complete your project
JEGS 555-300130 Metallic Ceramic Coated Long Tube Fits:
(all with 260-302W c.i.)
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | N | Y | N | Y |
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | Y | Y | N | Y |
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | Y | Y | N | Y |
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | N | Y | N | Y |
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | Y | Y | N | Y |
JEGS 555-300130 Metallic Ceramic Coated Long Tube Notes:
- Will not fit Dart Winsor heads
- Fits with C6 Transmission
- Requires power steering bracket 555-30781
- Does not fit 1971-1973 Mustang/Cougar with Manual Transmission
- Does not fit 1966-1969 Comet with Automatic Transmission column
FAQ
Can you break in an engine with ceramic coated headers?
- Yes, the JEGS 555-300130 Metallic Ceramic Coated Long Tube Headers are suitable for engine break-in, providing durable protection and efficient heat dissipation during this critical phase.
How long does the ceramic coating on headers last?
- The ceramic coating on JEGS 555-300130 long tube headers is designed for longevity, offering extended durability against heat and corrosion for sustained performance over time.
Specifications:
Part Type
Product Line
Bolts/Studs Included
Yes
Catalytic Converter(s) Included
No
Collector Attachment
3-bolt flange
Collector Diameter
3 in (76.2 mm)
Cross Over Pipe Included
No
Cylinder Head Port Shape
Rectangular
Flange Style
Standard
Gaskets Included
Yes
Header Finish
Silver
Header Flange Thickness
0.313 in (7.95 mm)
Header Material
Steel
Header Style
Full-length
Motor Mounts Included
No
Package Depth
40.00
Package Height
11.00
Package Width
20.00
Part Category
Performance Parts
Part Fitment
Semi Universal
Primary Tube Diameter
1.625 in (41.3 mm)
Primary Tube Gauge
18-gauge
Reducers Included
Yes
Shipping Weight
31.00
Transmission Mount Included
No
Tube Direction
Down Swept
Tuned
No
Weld-Up
No
300130 is rated
out of
5 by
12.
Rated 5 out of
5
by
F Campbell from
Excellent fitting headers for T5 conversion
Was skeptical in buying at first. Excellent fitting headers for 302 engine on 1973 Mustang on both sides. Plenty of clearance for clutch arm and cable. Only issue was drivers side engine mount had to be grinded down on corner a 1/8 inch so not to touch #1 pipe.
Had to jack engine up 2 inches to get header in from underneath.
Date published: 2024-02-19
Rated 5 out of
5
by
Doneb from
Great product. Fit perfectly.
The part I really liked was where the indentions are for the bolts that goes Into the heads. The boats are very easy to get to.
Date published: 2023-03-05
Rated 5 out of
5
by
Anonymous from
Excellent fit with aod conversion!!!
Hard to find full length headers to fit an aod in a 68 Mercury Cougar. These fit perfectly!!!!
Date published: 2020-11-02
Rated 5 out of
5
by
Mennonite Missile from
Fit great!
I was very happy with the headers, i put them in my 67 mustang fast back 289 4-spd car.. insulation was a breeze!! The coating was awsome!! Great quality!!
Date published: 2020-09-04
Rated 5 out of
5
by
Tara68 from
Exhaust
Very nice headers and exhaust. Still in the process of installing them.
Date published: 2018-02-15
Rated 5 out of
5
by
dads auto from
Headers are a sweet product. Nice finish
Very nice product. Go for it..... Shipment on time , excellent customer service.
Date published: 2015-02-14
Rated 4 out of
5
by
DMW53 from
1965 headders 302 5 sp.
Will not fit 5speed with cable clutch. I modafided tube #2, outher than that they fit good.
Date published: 2022-09-17
Rated 1 out of
5
by
y2k_pony from
does not fit a C6
pretty torqued. description said it would fit a C6. not even close. turns in at the bottom and hits both sides. save your money if you have a C6 transmission
Date published: 2023-05-10
I see that the description says that these headers will fit with a C6 transmission, but then there is a review that says that they will not fit with the C6. So, which is it? Have they actually been verified to fit with a C6?
The Jegs 555-300130 header is designed to work with a C6 transmission.
Date published: 2024-06-13
will these headers fit a 68 Fairlane 302 with power steering?
The Jegs 555-300130 header will fir a '68 Fairlane 302.
Date published: 2024-05-16
Will these jegs 300130 fit 1969 mustang with 302, T5 and boregeson steering conversion?
The Jegs 555-300130 header will fit a '69 Mustang, however, clearance will need checked on the other modifications.
Date published: 2023-05-05
Will these work on a 1969 F100, 2wd, manual transmission (TREMEC TKX)?
The Jegs 555-300130 header does not fit a '69 F100.
Date published: 2023-03-15
Will these fit a 1965 mustang with a 289 v8 with a T5 manual transmission and cable clutch?
The Jegs 555-300130 header will fit a '65 Mustang.
Date published: 2023-03-15
Will these fit a 1965 Mustang with a 302, factory manual 4-speed and Borgenson power steering unit? If yes, do I need the recommended power steering bracket 555-30781 or would there be a different bracket for my application?
The Jegs 555-300130 header will fit a '65 Mustang with 302. Power steering cars will need the additional bracket.
Date published: 2023-05-10
Will these headers fit 1969 Mustang 351W and T5 transmission?
The Jegs 555-300130 header should have no issues with a '69 Mustang 351W and T5 transmission.
Date published: 2022-12-05
will these work with an AOD transmission ?
Yes, these headers should fit most AOD automatic applications.
Date published: 2018-08-20
