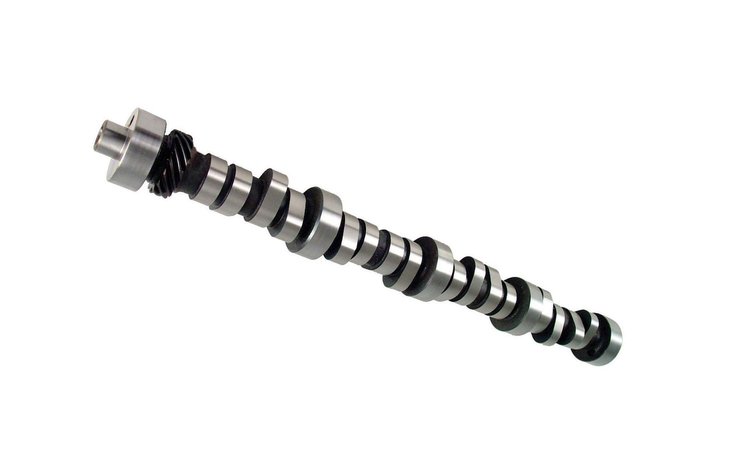

Xtreme Energy XE274HR Hydraulic Roller Camshaft for Ford 5.0L
Lift: .555''/.565''
Duration: 274°/282°
Lobe Separation Angle: 112°
RPM Range: 1500-5500




*Note: Firing Order 1-3-7-2-6-5-4-8

2500-stall converter, 3.55-3.73 gears, better cylinder heads, intake, and fuel system.

Operating Range:	1500-5500 RPM
Duration Advertised:	274° Intake / 282° Exhaust
Duration @ .050' Lift:	224° Intake / 232° Exhaust
Valve Lift w/1.6 Rockers:	.555' Intake / .565' Exhaust
Lobe Separation Angle:	112°

Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis


2500+ stall, 3.55-3.73 gears, better heads, intake and fuel system.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
