Breakdown of Included Items

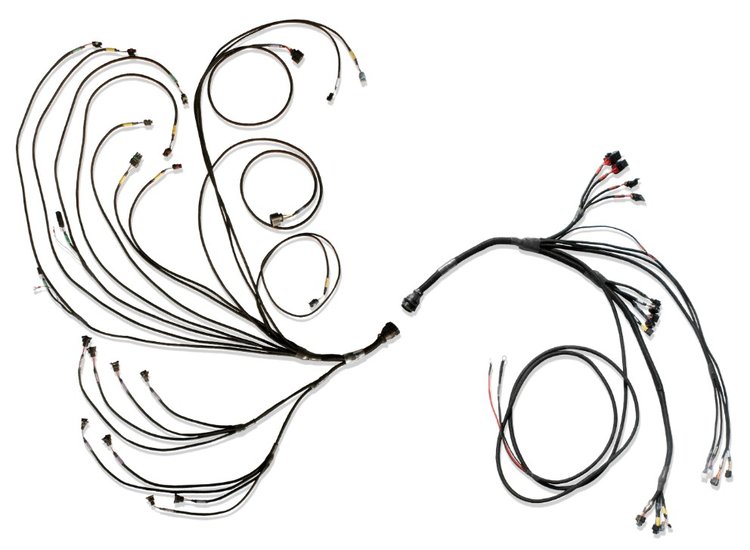

Fueltech 3026100077 PRO600 is a complete plug-and-play harness for most all V8 racing engines with a 1,2,3,4, right bank and 5,6,7,8, left bank cylinder numbering and when using the FuelTech FT600 ECU.

FuelTech 3026100076 Features:

• Setup for 8 EV1-Style Fuel Injectors such as FuelTech Low-Impedance Peak-and-Hold Injectors (or equivalent) wired in semi-sequential
• Connects 2 FuelTech Peak-and Hold Injector Drivers for 8 injectors with the option of using 16 injectors with the addition of Secondary Injector Harness 2002100077 (sold separately)
  • When using high-impedance injectors a peak-and-hold driver is not used but will require 2 peak-and-hold jumpers 200100071 (sold separately)
• Engine sensors pre-wired including the TPS, hall effect or variable reluctance (VR) crank trigger, fuel, and oil pressures, and much more
• Ready for use with a distributor type ignition but can be set up with individual coils using 8 IGN1A Smart Coils and a V8 Smart Coil Harness  or use the high-power FTSPARK-8 with 8 individual CDI Racing Coils with the FTSpark-8 Harness (all sold separately)
• Connectors in place for (2) Nano WB-O2 Oxygen Sensor Conditioners and (2) wideband O2 sensors such as 540-3737 (or equivalent). It can also be set up for use with the Alcohol O2 Conditioner by using the Alcohol O2 Harness and (2) Bosch to NTK Adapter Harnesses (all sold separately)
• (13) Additional input channels for engine and chassis data-logging such as travel sensors, driveshaft speed, staging, and more
• (3) Additional output connectors for controlling the wastegate, transbrake, nitrous, and much more
