Made in USA

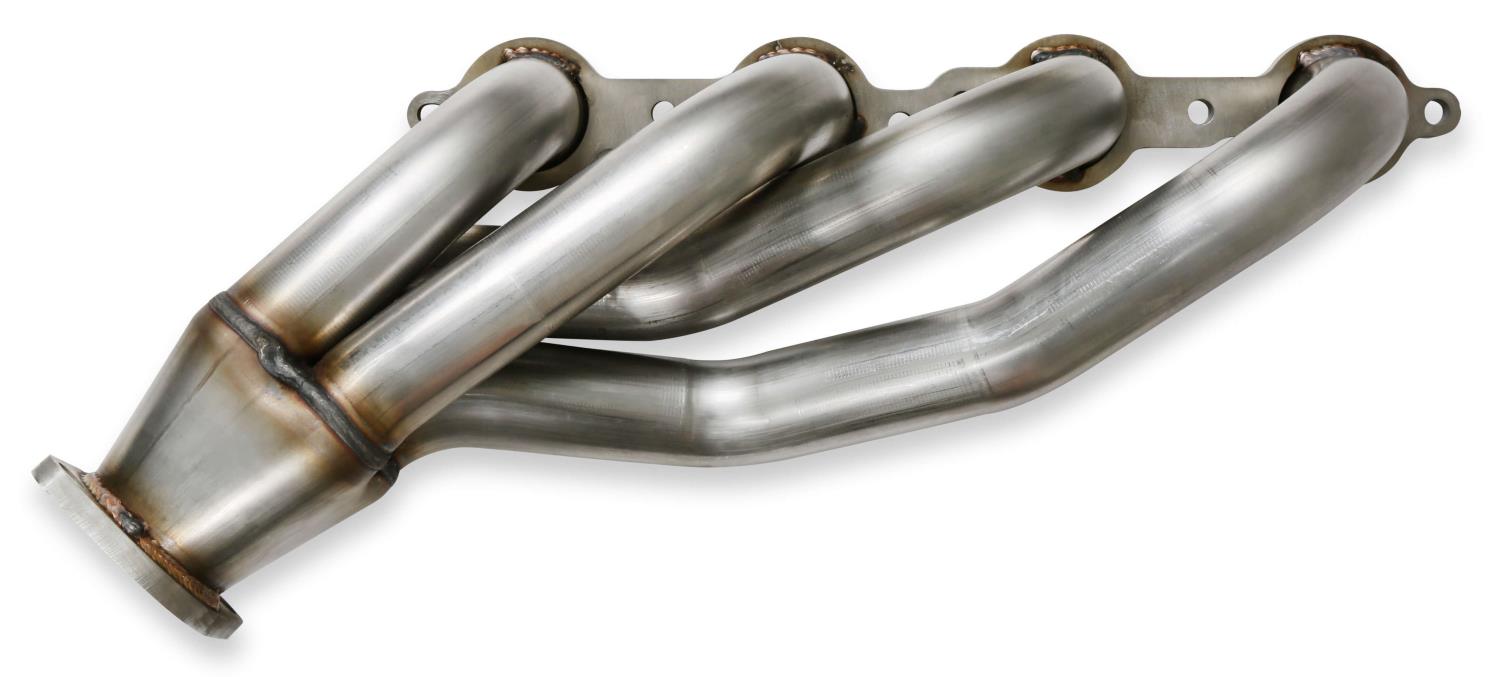

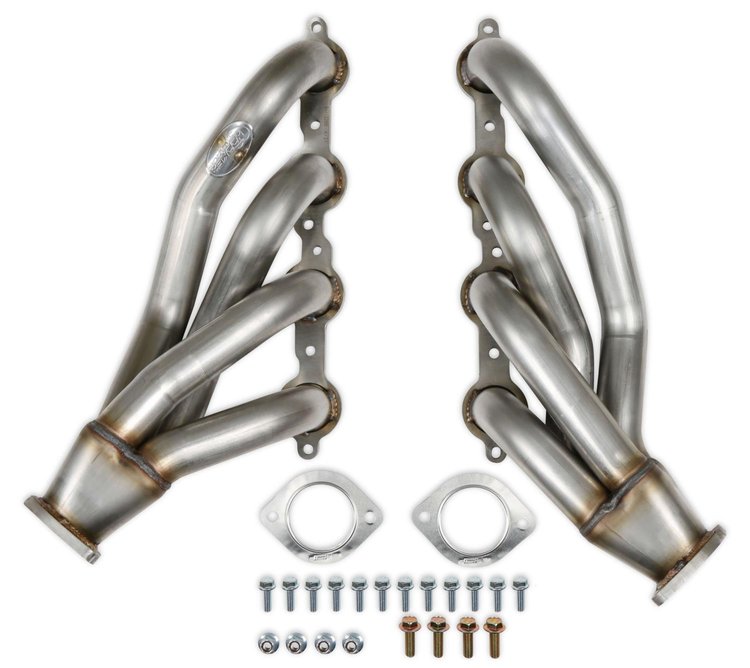

Blackheart LS Engine Swap Mid-Length Headers 1988-1998 GM C1500/K1500 Pickup Truck 2WD/4WD [304 Stainless Steel]
Product Discontinued
HOOKER HEADERSPART NUMBER: 520-BH13266

Blackheart LS Engine Swap Mid-Length Headers 1988-1998 GM C1500/K1500 Pickup Truck 2WD/4WD [304 Stainless Steel]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM Truck
Blackheart LS Engine Swap Mid-Length Headers
  • 1988-1998 GM C1500/K1500 Pickup Truck 2WD/4WD
  • 1.750 in. Primary Tube Diameter
  • 2.500 in. Collector
  • 304 Stainless Steel
  • Natural Finish
  • Pair

    BH13266 Features:

    • Includes (12) 8 mm x 1.250 header bolts, and (2) collector gaskets
    • Suitable to support stock to mid-level engine performance levels
    • Application-specific mandrel-bend geometry for adequate spark plug wire and component clearance
    • The 304 stainless steel construction delivers strength and corrosion resistance
    • Compatible with the factory GM Truck LS Oil Pan and Holley Retrofit Oil Pans 510-302-2, or 510-302-3
    • Compatible with GM TH350, TH400/3L80, 700R4, 4L60/4L70, 4L80/4L85, 6L80, and 6L90 automatic transmissions - For TH350, TH400/3L80, 700R4, and 4L80/4L85 transmissions, trimming to the bellhousing is required for clearance
    • Compatible with stock 1988-1994 mechanical transmission shift linkage and 1995-1998 transmission shift cable
    • Compatible with T56 Magnum manual transmissions (internal hydraulic release bearing only) in 2WD applications

    Notes:

    • Designed to be installed with Hooker Blackheart LS engine mounting components and exhaust systems for this specific application - Installing these headers with any other type or combination of engine and transmission mounting components may cause component clearance issues

    Emissions:

    • This product is engineered to facilitate the installation of a later model, emissions-friendly engine into a vintage/classic vehicle. Consumers are responsible for complying with laws prohibiting tampering, and for ensuring that modified vehicles are operated in a manner that complies with applicable Federal guidelines
    • Performance Headers for Your LS Engine Swap

      Hooker GM LS Swap Headers allow you to transplant a GM LS series engine into your favorite classic car or truck. Achieve a complete engine swap by combining Blackheart headers with Hooker LS swap accessories such as engine mounts, transmission crossmembers, oil pans, intakes, and exhaust kits.

    Part TypeHeader
    Product LineHooker Headers GM LS Engine Swap Headers
    BrandHOOKER HEADERS
    Package Height10.13
    Package Width19.75
    Package Length45.0
    Weight23.3 PG
    Part CategoryPerformance Parts
    Header FinishNatural
    Mandrel-BentYes
    QuantitySold as set of 2
    Bolts/Studs IncludedYes
    Engine Make/SizeGM LS
    Muffler IncludedNo
    Header Material304 Stainless steel
    Collector Attachment2-bolt flange
    Carb CompliantNo
    Collector Diameter2.5 in (63.5 mm)
    Reducers IncludedNo
    ApplicationAutomotive
    Header StyleMid-length
    Primary Tube Diameter1.75 in (44.5 mm)
    Vendor Part NumberBH13266
    Package Qty1
    Package TypeEA
