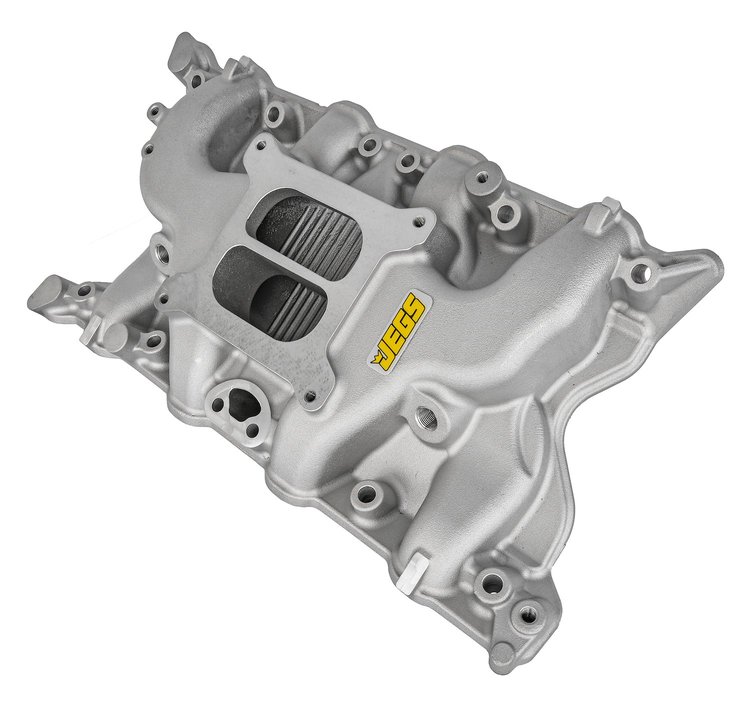

JEGS 555-513048 Ford 351C Dual Plane Intake Manifold Features:

• Dual Plane Design for optimum fuel distribution
• Accepts 4150/4160 4-BBL square bore carburetors
• Port exit dimensions: 1.330 in. W x 1.875 in. H
• Estimated runner length - Shortest: 7 in.
• Estimated runner length - Longest: 9 in.
• Manifold height: Front (A) 3.500 in., Rear (B) 4.250 in. (A + B divided by 2 = 3.875 in. Carburetor Pad Height)
• Click here to determine the carburetor pad height
• Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with JEGS Throttle Cable Bracket & Springs p/n 555-157050
• This Intake manifold will only fit 351C Cleveland engines
• 1 Front & 1 Rear 3/8 in. NPT vacuum port
• Designed with heat crossover and provision for a heated choke
• If heated choke is not being used an aluminum block of plate, gasket, and (2) 5/16 in.-18 x 3 in. UHL bolts and (2) 5/16 in. flat washers are included
• Intake gasket port matching is recommended for optimum performance

Additional Recommended Items (Sold Separately):

• Recommended 2-bbl Head Intake Gasket 555-210205
• Recommended 4-bbl Head Intake Gasket 555-210206
• Carburetors
• Carburetor AN Fuel Inlet Lines & Fittings
• Carburetor AN Fuel Hose & Fittings
• Carburetor Spacers
• Fuel Filters
• Carburetor Linkage, Choke Kits & Components

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
