Vehicle Info NeededMOROSOPART NUMBER: 710-20230

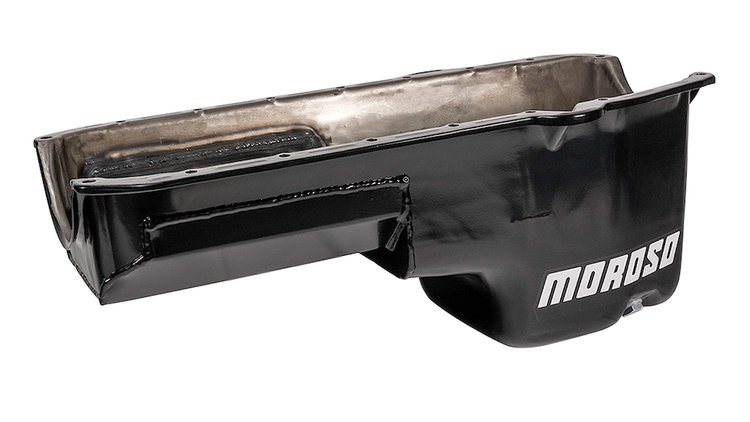

Street/Strip Oil Pan V8 Vega/Monza
$40799
1 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy
Street/Strip Oil PanV8 Vega/Monza Pre-1980 Small Block Chevy Driver-Side Dipstick Deep Sump Wet Sump 6-quart capacity 8.25" Depth Black Finish
- Designed for Vega/Monza chassis
- Accepts up to 3.48" stroke with steel rods
- Will not work with 400 cid (3.75" stroke)
- Reduces oil temperature
- Trap-door baffle for improved oil control
- Designed to fit with stock Vega & Monza crossmember
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickups:
- 710-24170 -- Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24350 -- Fits Moroso Small Block Chevy HV Race Pump 710-22111 and Stock Style Hi-Volume Pumps
- 710-24320 -- Fits Moroso Big Block Chevy Race Pumps 710-22150, 710-22160 or 710-22162 and Stock Style Big Block Chevy Hi-Volume Pumps
- 710-24360 -- Fits Mellings Pump 689-M155HV
Part TypeOil Pan
BrandMOROSO
Package Height11.0
Package Width11.0
Package Length26.5
Weight11.2 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.48 in (88.392 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentDirect Fit
Kicked OutNo
Stroker ClearancedNo
Vendor Part Number20230
Package Qty1
Package TypeEA
