Vehicle Info NeededMOROSOPART NUMBER: 710-22124

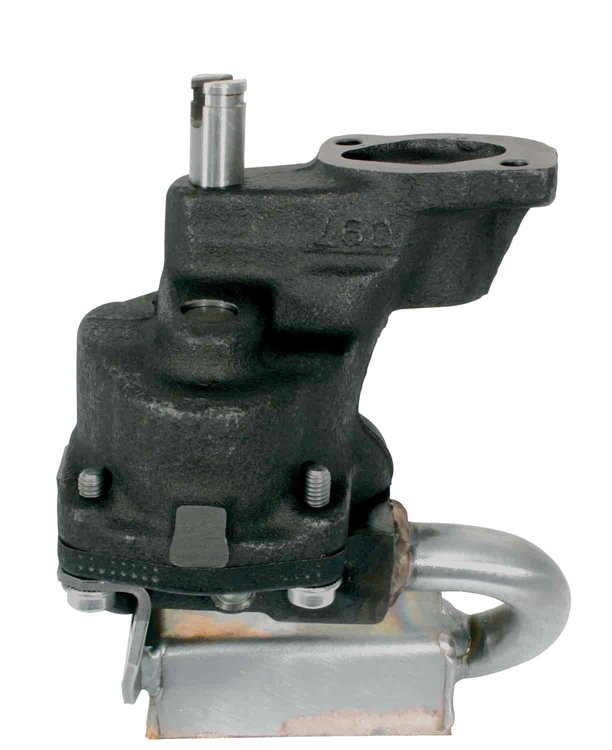

Oil Pump/Pickup Package Small Block Chevy
$16049
Ships on 09/09/2026
Lowest Price GuaranteeSmall Block Chevy
- Oil Pump/Pickup Package
- Small Block Chevy
- 8.25" Deep Pan
- Standard Volume
Package includes the Moroso pickup welded to the oil pump for a simple bolt-on installation. The pickup orientation ensures .250" clearance from pickup to bottom of any Moroso oil pan. The oil pump has no internal modifications.Fits following Moroso Pans: - 710-20180
- 710-20181
- 710-20182
- 710-20183
- 710-20184
- 710-20190
- 710-20191
- 710-20194
- 710-20195
- 710-20196
- 710-20200
- 710-20201
- 710-20205
- 710-20230
- 710-21017
- 710-21235
- 710-21237
Part TypeOil Pump
BrandMOROSO
Package Height4.6
Package Width5.4
Package Length7.3
Weight4.45 PG
Part CategoryPerformance Parts
Gaskets IncludedNo Gasket Required
Pickup Welded OnYes
Oil Pan Depth8.25 in (209.6 mm)
Hardened Driveshaft RecommendedYes
Pickup IncludedYes
Oil Pump Driveshaft IncludedNo
QuantitySold as a Kit
Oil Pump StyleWet sump
Oil Pump VolumeStandard-volume
Part FitmentSemi Universal
Vendor Part Number22124
Package Qty1
Package TypeEA
