Vehicle Info NeededPATRIOT EXHAUSTPART NUMBER: 737-H8036
GM Specific Fit Headers 1982-1992 2WD Blazer, Jimmy, S10 & S15
$24148$268.31You Save$26.83
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM Truck Specific Fit Headers

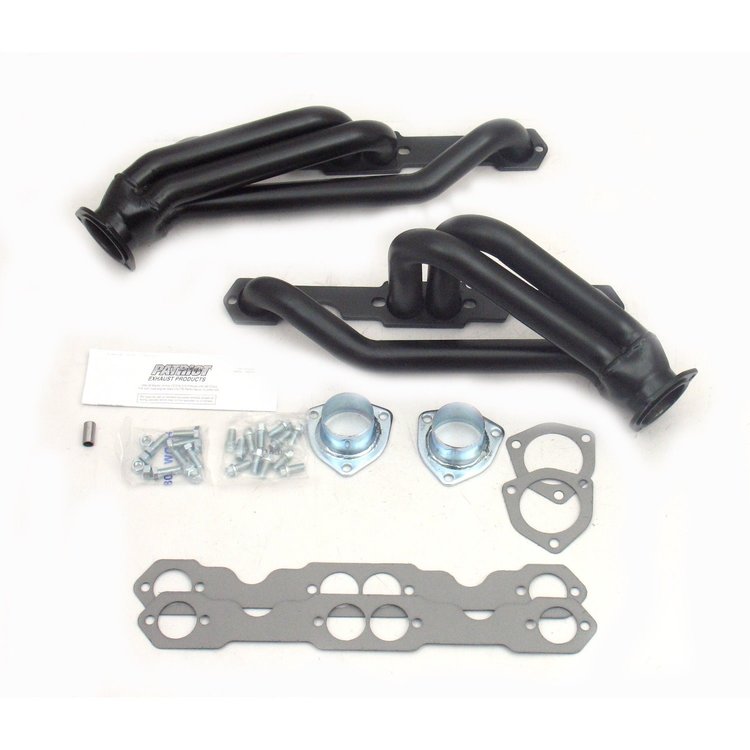

GM Specific Fit Headers1982-1992 2WD Blazer, Jimmy, S10 & S15 265-400 Small Block Engine Swap Header 1-1/2'' Primary Tubes 2-1/2'' Collector Round Port Shape Black Finish
Fits:
Fits:
- 1982-1993 2WD Blazer, Jummy, S10, S15 (Engine Swap)
- Will not fit angle plug heads.
- Shorter design for maximum ground clearance on cars lowered up to 4'.
- Fits with most engine swap kits.
| Automatic | Manual | |||||
| A/C | P/B | P/S | Column | Floor | Column | Floor |
| Y | Y | Y | N | 68 | N | N |
68 - Fits Turbo 350 automatic transmissions with floor shifter only.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Patriot GM Truck Specific Fit Headers are built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing. Patriot headers are available raw or with metallic ceramic coating. Unlike paint or chrome, metallic ceramic coating is easy to keep clean, resist rust and corrosion and will not discolor. Metallic ceramic coating also reduces underhood temperatures. All Patriot headers come with installation hardware, collector reducers, gaskets and instructions.
Part TypeHeader
Product LinePatriot GM Truck Specific Fit Headers
BrandPATRIOT EXHAUST
Package Height8.4
Package Width17.2
Package Length20.5
Weight17.4 PG
Part CategoryPerformance Parts
PositionN/A
Header FinishNatural
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Brake SystemPower
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter2.5 in (63.5 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
Primary Tube Gauge18-gauge
Header StyleShorty
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.5 in (38.1 mm)
Vendor Part NumberH8036
Package Qty1
Package TypeEA
