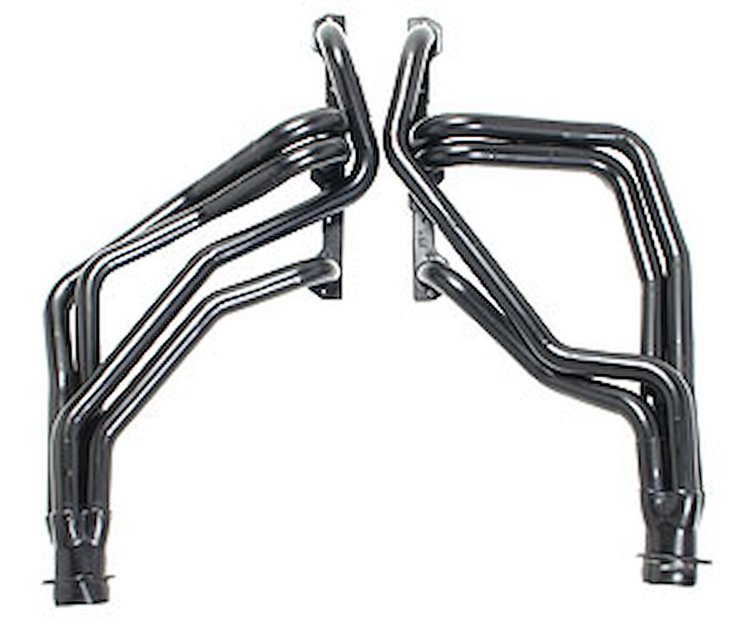

S10 Engine Swap Headers 1982-1993 Chevy S10 with Small Block Chevy
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69490

S10 Engine Swap Headers 1982-1993 Chevy S10 with Small Block Chevy

$51999
ShippingShips on Oct 02, 2026
Lowest PriceLowest Price Guarantee
Best Value
Save
$20600
Engine Swap Shorty Headers for 1982-1997 Chevy S-10 and GMC S-15 [Small Block Chevy]

555-30094

Engine Swap Shorty Headers for 1982-1997 Chevy S-10 and GMC S-15 [Small Block Chevy]

$31399

1982-1993 Chevy S10 Small Block Chevy Engine Swap Headers
    S10 Engine Swap Headers
  • 1982-1993 Chevy S10 with Small Block Chevy
  • 1-5/8 in. Tube Diameter
  • 3 in. Collector Diameter
  • Full-Length Tube Design
  • For Automatic Transmissions Only
  • Uncoated

    Note: Oil filter relocation may be necessary for proper clearance. Trans-Dapt part number 969-1122 is recommended.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Headers for Engine Swaps

    Hedman's engine swap headers are specifically designed to make easy work out of some of the most popular engine swap projects. Each pair of headers is handcrafted from quality materials with a durable finish of your choice. Finishes include Black-Maxx satin black ceramic-metallic, HTC polished silver ceramic-metallic, or uncoated (with a temporary black paint).

Part TypeHeader
Product LineHedman Hedders Engine Swap Headers
BrandHEDMAN
Package Height9.5
Package Width18.75
Package Length39.0
Weight29.6 PG
Part CategoryPerformance Parts
Header FinishPainted
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentBall and socket flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.625 in (41.3 mm)
Vendor Part Number69490
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
