FT450 or FT550 ECU 4 Cylinder "A" Harness
InfoVehicle Info Needed
FUELTECHPART NUMBER: 382-2002006505

FT450 or FT550 ECU 4 Cylinder "A" Harness

$59900
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

FT450 Extreme Performance ECU and Dashboard (w/o Harness)

FUELTECH

FT450 Extreme Performance ECU and Dashboard (w/o Harness)

Part Number : 382-3010005384
$99900
FT550 Extreme Performance ECU and Dashboard (w/o Harness)

FUELTECH

FT550 Extreme Performance ECU and Dashboard (w/o Harness)

Part Number : 382-3010005496
$1,89900
FT550LITE Extreme Performance ECU (w/o Harness)

FUELTECH

FT550LITE Extreme Performance ECU (w/o Harness)

Part Number : 382-3010005613
$1,42900
FT550 ECU 4 Cylinder "B" Expansion Harness

FUELTECH

FT550 ECU 4 Cylinder "B" Expansion Harness

Part Number : 382-2002006600
$27900

Engine Control (ECU)

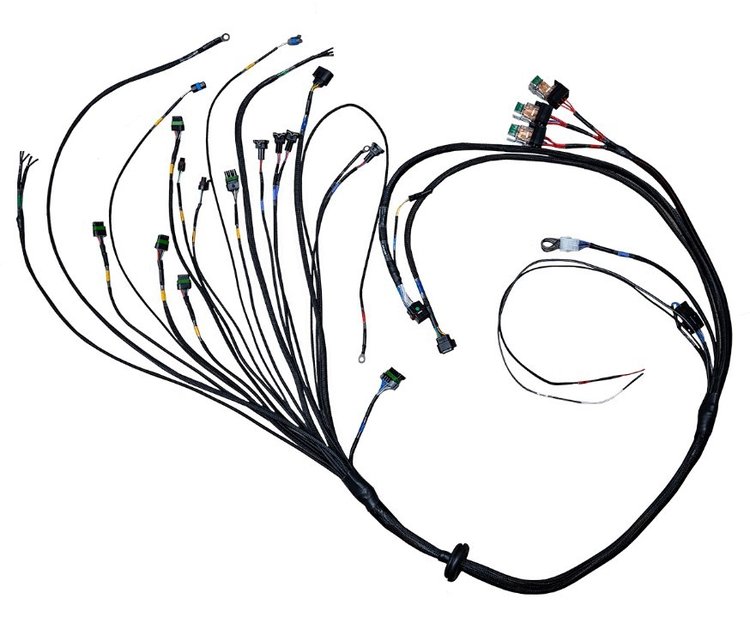

FT450 or FT550 ECU 4 Cylinder "A" Harness
  • Fits: FuelTech FT450, FT550, and FT550LITE Engine Control and Monitoring Systems
  • Includes: Harness "A" for 4 Cylinder Applications
  • Connectors: Plug-and-Play
  • Sold Individually

    FuelTech 2002006505 is a complete plug-and-play harness and is the only required harness for a 4-cylinder application when using the FuelTech FT450. When using or upgrading to the FuelTech FT550 or the FT550LITE and in order to utilize all of the extra inputs and outputs, the 2002006600 Universal "B" expansion harness is also required.

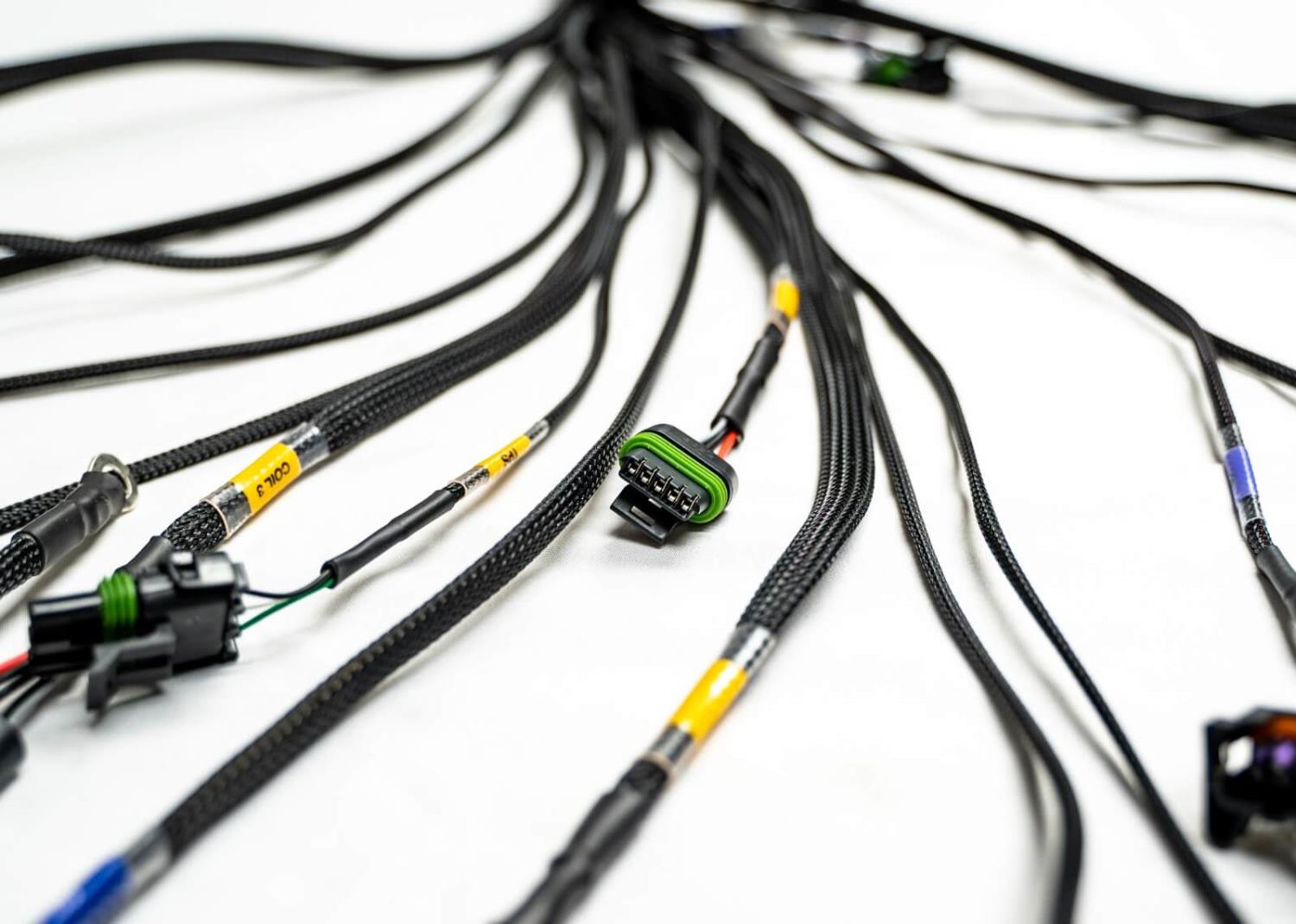

    FuelTech 2002006505 Pre-Wired Connectors:

    • (4) EV1-Style Fuel Injectors such as FuelTech Low-Impedance Peak-and-Hold Injectors (or equivalent) wired in semi-sequential
    • (1) FuelTech Peak-and Hold Injector Driver (4 injectors)
      • When using high-impedance injectors a peak-and-hold driver is not required, only the included bypass connector
    • (4) IGN1A Smart Coils wired in waste spark
    • (1) FuelTech WB-O2 Nano wideband oxygen sensor display and conditioner
    • (1) GM-style intake air temperature sensor such as FuelTech 5005100015 (or equivalent)
    • (2) Pressure sensors for fuel, oil, or any 0-5 volt sensor such as FuelTech 5005100021 (or equivalent)
    • (1) GM-style engine temperature sensor such as FuelTech 5005100016 (or equivalent)
    • (1) Extra output for generic use
    • (3) Power relays (fused relays included w/harness)
    • Crankshaft and camshaft sensor ready with both hall-effect and variable reluctance (VR) ready

    Note: To activate coils and injector relays the blue number 6 output must be configured as a fuel pump or RPM activation

    • Wiring Harnesses for Popular Engine Combinations, Boost Control, and Data-Logging

      FuelTech has the correct wiring harness from plug-and-play to unterminated to complete your FuelTech ECU-equipped project.



    Part TypeFuel Management Wiring Harness
    Product LineFuelTech Wiring Harnesses
    BrandFUELTECH
    Package Height12.0
    Package Width15.0
    Package Length15.0
    Weight5.5 PG
    Part CategoryPerformance Parts
    Wire Connector StyleMulti-pin
    QuantitySold individually
    Engine Management System Component TypeWiring harness
    Part FitmentSemi Universal
    Vendor Part Number2002006505
    Package Qty1
    Package TypeEA
