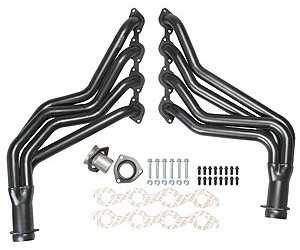

Standard Duty Uncoated Full Length Headers for 1968-91 Chevy/GMC Pickup, Blazer, Jimmy, Suburban

Name: Standard Duty Uncoated Full Length Headers for 1968-91 Chevy/GMC Pickup, Blazer, Jimmy, Suburban
Brand: HEDMAN
SKU: 500-69110
Price: 366.99 USD
Availability: InStock

^$366⁹⁹

2 left in stock

Ships Today

Lowest Price Guarantee

Best Value

Save
^$167⁰⁰

555-30059

Painted Long Tube Headers for 1968-1974 Big Block Chevy/GMC Trucks

^$199⁹⁹

GM Trucks

1968-91 Chevy/GMC Pickup, Blazer, Jimmy, Suburban
396-502
Tube Size: 1-3/4"
Collector Size: 3"
1968-87 CHEVROLET,GMC C20 PICKUP, C30 PICKUP, C25/C2500, C30/C3500, R20 PICKUP, R30 PICKUP, R2500 PICKUP, R3500 PICKUP, V20 PICKUP, V30 PICKUP, V2500 PICKUP, V3500 PICKUP 396-502; 2WD
1968-81 CHEVROLET,GMC K25/K2500 396-502; 4WD
1968-81 CHEVROLET,GMC BLAZER, JIMMY 396-502; 4WD, Engine Swap
1968-91 CHEVROLET,GMC BLAZER, JIMMY 396-502; 2WD
1968-91 CHEVROLET,GMC K25/K2500 SUBURBAN, R20 SUBURBAN, R2500 SUBURBAN, V20 SUBURBAN, V2500 SUBURBAN 396-502; 4WD
1968-91 CHEVROLET,GMC C25/C2500 SUBURBAN, C20 SUBURBAN, R20 SUBURBAN, R2500 SUBURBAN, V20 SUBURBAN, V2500 SUBURBAN 396-502; 2WD
1968-87 CHEVROLET, GMC C20 PICKUP, C30 PICKUP, C25/C2500, C35/C3500, R20 PICKUP, R30 PICKUP, R2500 PICKUP, R3500 PICKUP, V20 PICKUP, V30 PICKUP, V2500 PICKUP, V3500 PICKUP 396-502; 2WD
Without smog injection or injection heads.
Must use factory big block chevy hardware & mounts.
Must use 1975 and later model clutch linkage located at rear of engine.
Due to clyinder heads (aluminum) generation 6 engines, 502 BB Chevy will have clearance problems on some applications. Bottom of hedder flanges may hit head bolts. Notching may be necessary.
Elite replacement gasket #27550.
K5 Blazer up to 91.
Not legal for sale or use in California on pollution controlled motor vehicles.
Modification to stock exhaust required to retain catalytic converter.
Not applicable or intended for street or highway use. Legal only for racing vehicles which may never be used upon a highway, check footnotes also.
Not legal for sale or use in California.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. For the ultimate protection from the elements, click the following link to view Hedman's own HTC Hi-Tech Coated Headers.

Part TypeHeader

Product LineHedman Hedders Standard-Duty Uncoated Headers

BrandHEDMAN

Package Height8.25

Package Width16.5

Package Length38.75

Weight33.7 PG

Part CategoryPerformance Parts

Header FinishPainted

Tube DirectionDown Swept

QuantitySold as a pair

Bolts/Studs IncludedYes
