Made in USA
Standard Duty Uncoated Full Length Headers for 1967-91 Chevy/GMC Blazer, Jimmy, Suburban 2WD
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69130

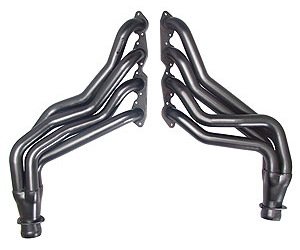

Standard Duty Uncoated Full Length Headers for 1967-91 Chevy/GMC Blazer, Jimmy, Suburban 2WD

$41699
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

GM Trucks
Standard Duty Uncoated Full Length Headers
  • 1967-91 Chevy/GMC Blazer, Jimmy, Suburban 2WD
  • 396-502
  • Tube Size: 2"
  • Collector Size: 3"

  • 1968-91 CHEVROLET,GMC BLAZER, JIMMY 396-502; 2WD
  • 1968-91 CHEVROLET,GMC C25/C2500 SUBURBAN, C20 SUBURBAN, R20 SUBURBAN, R2500 SUBURBAN, V20 SUBURBAN, V2500 SUBURBAN 396-502; 2WD
  • 1968-87 CHEVROLET,GMC C10,C10 PICKUP,C20,C20 PICKUP,C30,C30 PICKUP, C25/C2500, C30/C3500, R20 PICKUP, R30 PICKUP, R2500 PICKUP, R3500 PICKUP, V20 PICKUP, V30 PICKUP, V2500 PICKUP, V3500 PICKUP 396-502; 2WD
    • Without smog injection or injection heads.
    • Modification to stock exhaust required to retain catalytic converter.
    • Must use factory big block chevy hardware & mounts.
    • Must use 1975 and later model clutch linkage located at rear of engine.
    • Due to clyinder heads (aluminum) generation 6 engines, 502 BB Chevy will have clearance problems on some applications. Bottom of hedder flanges may hit head bolts. Notching may be necessary.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeHeader
    BrandHEDMAN
    Package Height8.5
    Package Width16.5
    Package Length39.5
    Weight32.2 PG
    Part CategoryPerformance Parts
    Header FinishPainted
    Tube DirectionDown Swept
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Collector AttachmentBall and socket flange
    Flange StyleStandard
    TunedNo
    Collector Diameter3 in (76.2 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    ApplicationAutomotive
    Primary Tube Gauge18-gauge
    Header StyleFull-length
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter2 in (50.8 mm)
    Vendor Part Number69130
    Package Qty1
    Package TypeEA
