Competition Headers 396-502 Chevy Big Block V8
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-2463

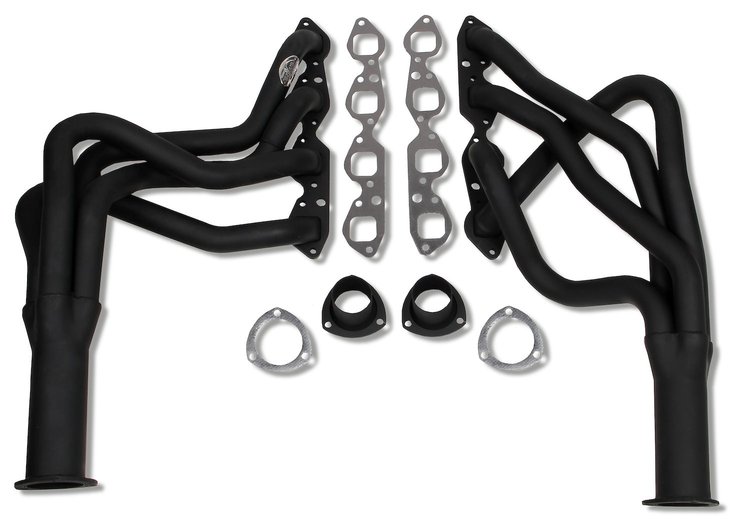

Competition Headers 396-502 Chevy Big Block V8

$31195
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy/GMC Truck & Van Chevy Big Block
    Competition Headers
  • 396-502 Chevy Big Block V8
  • 1969-91 Blazer, Suburban, Jimmy, Yukon 2DR 4WD
  • 1969-87 1/2, 3/4, & 1 Ton Truck 4WD
  • 1.75'' x 31'' Primary Tubes
  • 3'' x 8'' Collector
  • Black Painted

    Footnotes:
  • Will not fit Turbo 400 unless transmission crossmember is set back 2' at the mount.
  • Headers will not accomodate power takeoffs.
  • Applications with oxygen sensors use reducers 555-30012.

    Accessory Compatibility:
  • Power Steering - Yes
  • Power Brakes - Yes
  • Air Conditioning - Yes, must modify factory brackets
  • Smog Pump - N/A

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - No

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

All Budget Headers are NOT Created Equally!
Hooker's Competition Series Headers come in your choice of finishes and are engineered to perform at a reasonable price! To let your engine really breath Hooker utilized 16 gauge (.049'' thick) steel tubing attached to long transition style collectors! Giving you a serious increase in flow over other brand headers without a loss in the backpressure most engines need to perform! After years of testing, Hooker has discovered that a machined 5/16'' header flange offers enough flex to hold the gasket tight to each exhaust port, and enough rigidity to keep everything properly tied together.

Show MoreFeatures:
  • Mandrel-bent tuned-length tubing for smooth exhaust flow and power
  • Sturdy 16 gauge steel tubing
  • Perfect seal 5/16'' machined header flanges
  • Long transition collector for improved power over standard headers
  • Comes with gaskets and bolts Reducers sold separately.
  • Available in five finishes to suit your needs (see listings below for product availability) -

    Black Painted (Part numbers do not have a suffix)

    Metallic Ceramic Coating (Part numbers have a -1 suffix)

    Stainless Steel (Part numbers have a -2 suffix)

    "Darksides" Black Ceramic Coating (Part numbers have a -3 suffix)

    Titanium Ceramic Coating (Part numbers have a -4 suffix)
Part TypeHeader
Product LineHooker Headers Competition Headers Chevy/GM Truck
BrandHOOKER HEADERS
Package Height12.2
Package Width19.5
Package Length42.15
Weight39.4 PG
Part CategoryPerformance Parts
Header FinishPainted
Tube DirectionDown Swept
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Gaskets IncludedYes
TunedNo
Motor Mounts IncludedNo
Primary Tube Gauge16-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Primary Tube Length31 in (787.4 mm)
QuantitySold as a pair
Header MaterialSteel
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
Collector Diameter3 in (76.2 mm)
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number2463HKR
Package Qty1
Package TypeEA
