Made in USA

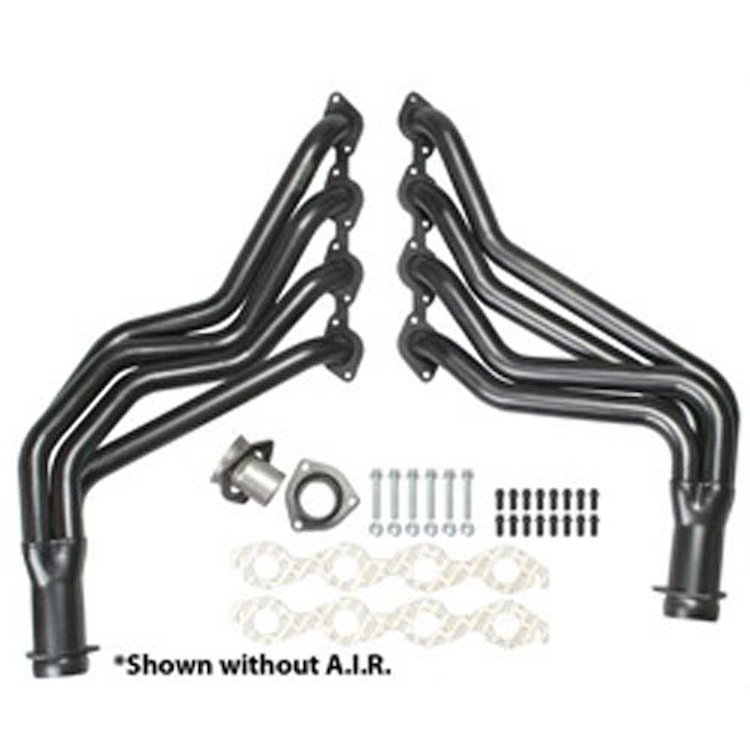

Standard Duty Uncoated Full Length Headers for 1967-91 Chevy/GMC Truck/SUV 2WD/4WD 396-502
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69111

Standard Duty Uncoated Full Length Headers for 1967-91 Chevy/GMC Truck/SUV 2WD/4WD 396-502

$48999
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

GM Trucks
    Standard Duty Uncoated Full Length Headers
  • 1967-91 Chevy/GMC Truck/SUV 2WD/4WD 396-502
  • Tube Size: 1.75"
  • Collector Size: 3"

    1968-1981 K20 PICKUP, K25/K2500 396-454, 4WD
    1968-1981 BLAZER, JIMMY 396-454 Engine Swap, 4WD
    1968-1991 BLAZER, JIMMY 396-454 Engine Swap, 2WD
    1968-1991 K20 SUBURBAN, K25/K2500 SUBURBAN, R20 SUBURBAN, R2500 SUBURBAN, V20 SUBURBAN, V2500 SUBURBAN 396-502, 4WD
    1968-1987 C20 PICKUP, C30 PICKUP, C25/C2500, C30/C3500, R20 PICKUP, R30 PICKUP, R2500 PICKUP, R3500 PICKUP, V20 PICKUP, V30 PICKUP, V2500 PICKUP, V3500 PICKUP 396-502, 2WD
    1968-1991 C20 SUBURBAN, C25/C2500 SUBURBAN, R20 SUBURBAN, R2500 SUBURBAN, V20 SUBURBAN, V2500 SUBURBAN 396-502, 2WD
  • Must use factory big block chevy hardware & mounts.
  • Must use 1975 and later model clutch linkage located at rear of engine.
  • Elite replacement gasket #27550.
  • Includes parts necessary to retain emission devices. (50 State)
  • With A.I.R. system.
  • Modification to stock exhaust required to retain catalytic converter.
  • For vehicles 1964 through 1974 with A.I.R. system, considered as O.E.M. replacement parts and do not require an E.O. #, when existing emission controls are not removed from vehicle.
  • 1975-1981 only, 50 state legal for these years.
  • EO#D167-27

    Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. For the ultimate protection from the elements, click the following link to view Hedman's own HTC Hi-Tech Coated Headers.

Part TypeHeader
Product LineHedman Hedders Standard-Duty Uncoated Headers
BrandHEDMAN
Package Height8.6
Package Width16.8
Package Length40.0
Weight32.6 PG
Part CategoryPerformance Parts
Carb Eo NumberD-167-3 (pdf)
Header FinishPainted
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentBall and socket flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number69111
Package Qty1
Package TypeEA
