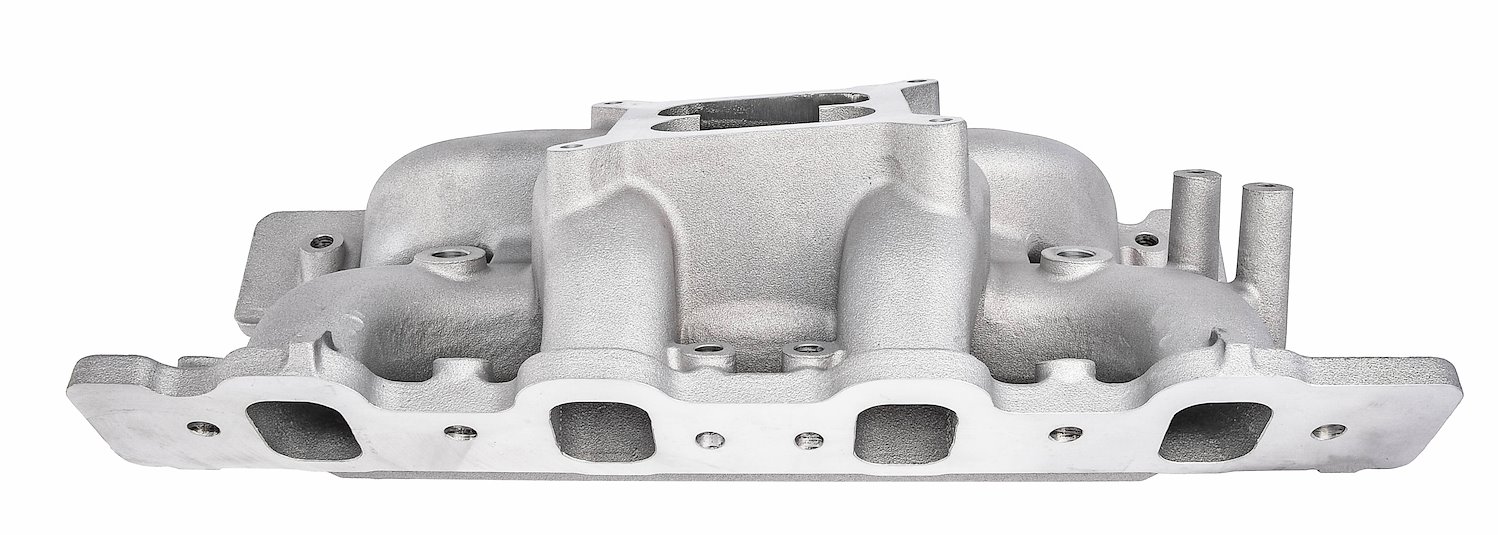

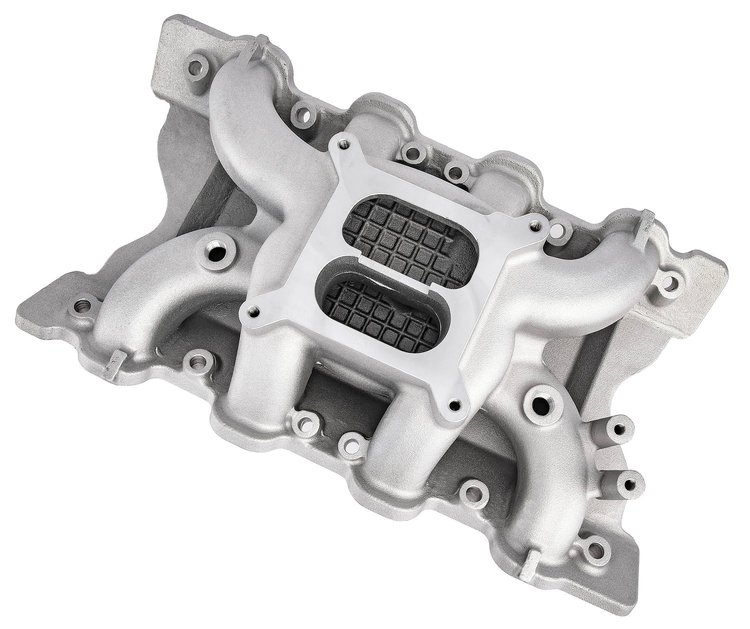

Cool Gap Intake Manifold for 1969-1974 Ford 351C Cleveland, Dual Plane [Satin]

Name: Cool Gap Intake Manifold for 1969-1974 Ford 351C Cleveland, Dual Plane [Satin]
Brand: JEGS
SKU: 555-513101
Price: 324.99 USD
Availability: InStock

^$324⁹⁹$357.99You Save$33.00

4 left in stock

Ships on Sep 14, 2026

Lowest Price Guarantee

Ford 351 Cleveland

Cool Gap Intake Manifold

1969-1974 Ford 351C Cleveland

Fits 2-bbl & 4-bbl Heads (Port Matching is Recommended)

Dual Plane

4-BBL Square Bore 4150/4160 Mounting Flange

Non-EGR

RPM Range: 1500-6500

Cast Aluminum

Satin Finish

JEGS 555-513101 Ford 351C Dual Plane Intake Manifold Features:

Dual Plane design for optimum fuel distribution
Accepts 4150/4160 4-BBL square bore carburetors
Cool Gap design keeps hot engine oil away from intake runners resulting in a cooler, denser charge for more horsepower, torque, and efficiency
Port exit dimensions: 1.420 in. W x 2.040 in. H
Estimated runner length - Shortest: 7 in.
Estimated runner length - Longest: 8 in.
Manifold height: Front (A) 4.480 in., Rear (B) 5.560 in. (A + B divided by 2 = 5.020 in. Carburetor Pad Height)
Click here to determine the carburetor pad height
Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with JEGS Throttle Cable Bracket & Springs p/n 555-157050
This Intake manifold will only fit 351C Cleveland engines
1 Front & 1 Rear 3/8 in. NPT vacuum port
No provision for divorced or heated choke
Intake gasket port matching is recommended for optimum performance

Additional Recommended Items (Sold Separately):

Recommended 2-bbl Head Intake Gasket 555-210205
Recommended 4-bbl Head Intake Gasket 555-210206
Carburetors
Carburetor AN Fuel Inlet Lines & Fittings
Carburetor AN Fuel Hose & Fittings
Carburetor Spacers
Fuel Filters
Carburetor Linkage, Choke Kits & Components

JEGS Carb Recommendations/Notes
Carburetors
		570 CFM	670 CFM	770 CFM
		Up to 300 HP	300 to 400 HP	400 to 500 HP
Manual Choke		510-0-81570	510-0-81670	510-0-81770
Electric Choke		510-0-80570	510-0-80670	510-0-80770
Carburetor Studs
555-15840	1-1/2" Studs	Suggested for carb and gasket only
555-15841	2" Studs	Suggested for carb and 1/2" spacer
555-15842	2-1/2" Studs	Suggested for carb and 1" spacer
555-15846	3-1/2" Studs	Suggested for carb and 2" spacer
Carburetor Base Gaskets
555-16100	Open (Square Flange)
555-16105	4-Hole (Square Flange)
Intake Manifold Bolts
PCE318.1003	Ford 351C Cleveland - Standard

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Cooler Intake Temperature Makes Horsepower

JEGS Cool Gap dual-plane intake manifold is more efficient and creates more horsepower than standard dual-plane models. This manifold's unique air space design under the plenum and runners allow airflow to pull off excess heat, decreasing the intake temperature and providing better fuel atomization for improved performance. The 4150/4160 carb flange accepts most non-EGR 4-bbl square bore carburetors; this cast aluminum manifold is available in satin and polished finishes.

Part TypeIntake Manifold

Product LineJEGS Cool Gap Performance Intake Manifolds

BrandJEGS

Package Height7.4

Package Width12.4

Package Length23.4

Weight19.85 PG

UsageStreet/Strip

Intake MaterialCast Aluminum

Intake Gasket IncludedNo

Intake StyleDual Plane (Air Gap)

EmissionWithout EGR
