Wheel studs may look simple, but getting the correct size is critical for safety and proper wheel installation. Whether you are replacing damaged studs, upgrading to longer wheel studs for thicker wheels or spacers, or switching lug nut styles, accurate measurements ensure the right fit.
This guide explains how to measure wheel studs correctly, what dimensions matter, and how to choose the right replacements for your vehicle.
Why Wheel Stud Measurements Matter

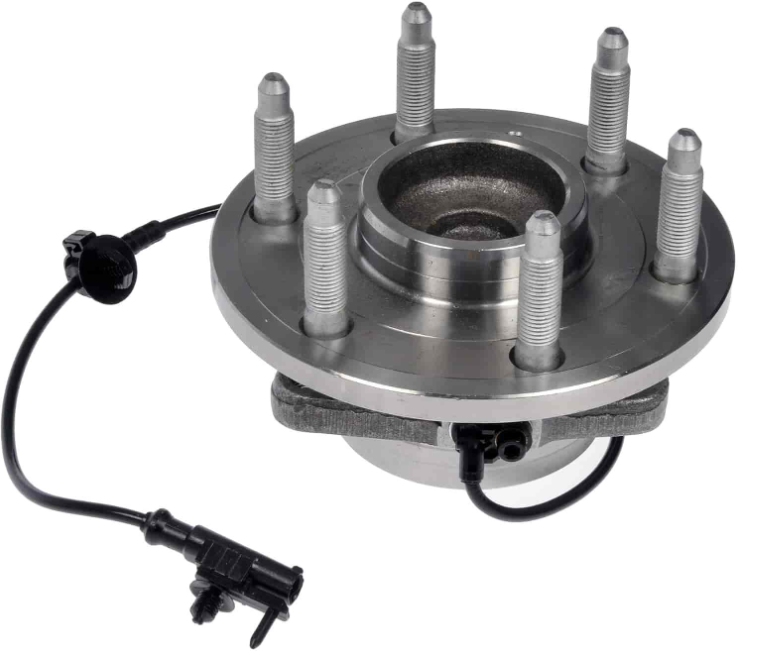

Wheel studs secure the wheel and brake rotor or drum to the hub. If the studs are too short, you may not have enough thread engagement for safe lug nut installation. If the knurl diameter is incorrect, the stud may not seat properly in the hub.
Incorrect wheel stud sizing can lead to wheel vibration, stripped threads, or even wheel loss. Taking a few minutes to measure properly prevents costly mistakes.
Tools You Will Need
To measure wheel studs accurately, you will need a caliper or micrometer for precise diameter measurements and a ruler or measuring tape for length. A thread pitch gauge is helpful for identifying thread pitch if it is unknown.
Cleaning the stud threads before measuring improves accuracy.
Step 1: Measure Overall Length
Overall length is measured from the base of the stud head to the end of the threads. If the stud is still installed, measure from the mounting surface of the hub outward to the tip.

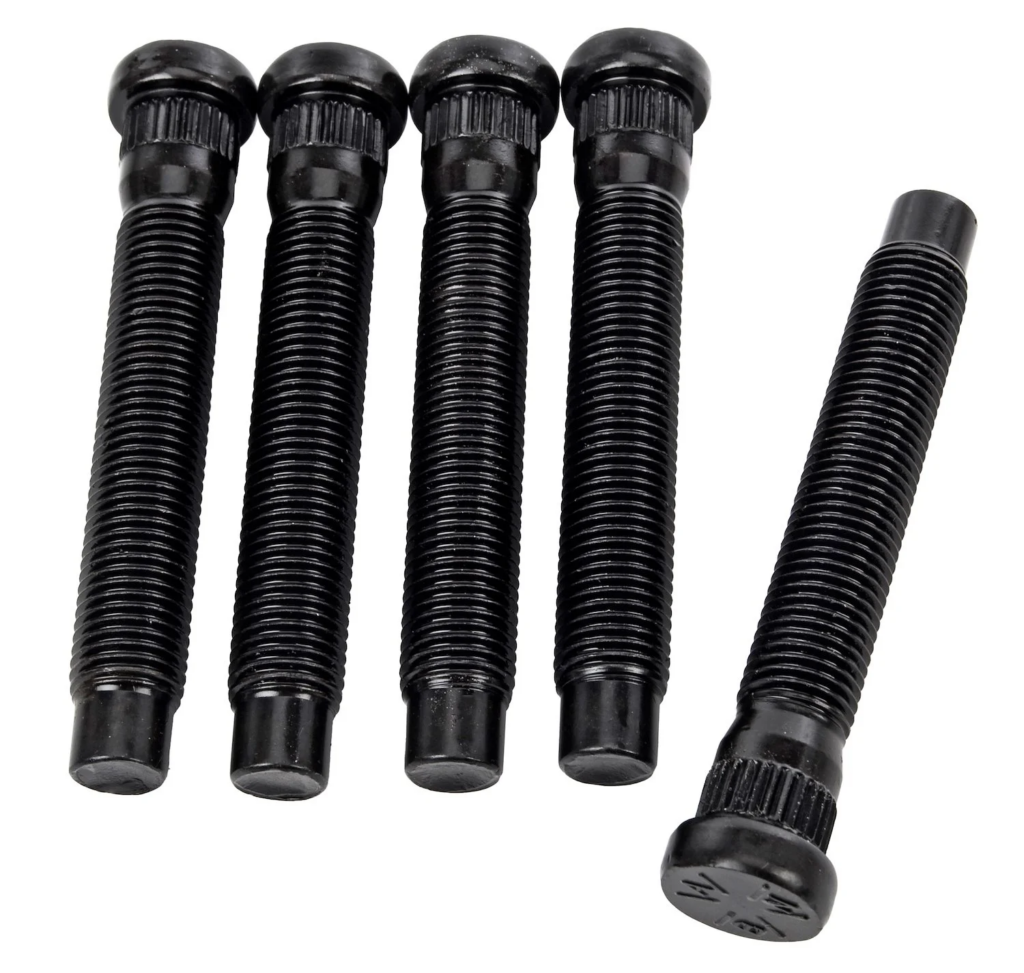

This dimension is important if you are upgrading to longer wheel studs for aftermarket wheels, wheel spacers, or thicker brake rotors.
Make sure to compare the new stud length to your current setup to ensure adequate lug nut engagement.
Step 2: Measure Thread Diameter
Thread diameter refers to the outside diameter of the threaded portion of the stud. Use a caliper to measure across the threads at the widest point.
Common thread diameters include 12 mm, 14 mm, 7/16, and 1/2 inch, but always verify your specific application.
Step 3: Identify Thread Pitch
Thread pitch describes how closely spaced the threads are. For metric studs, pitch is measured in millimeters between threads, such as 1.25 or 1.5. For standard studs, pitch is expressed in threads per inch.

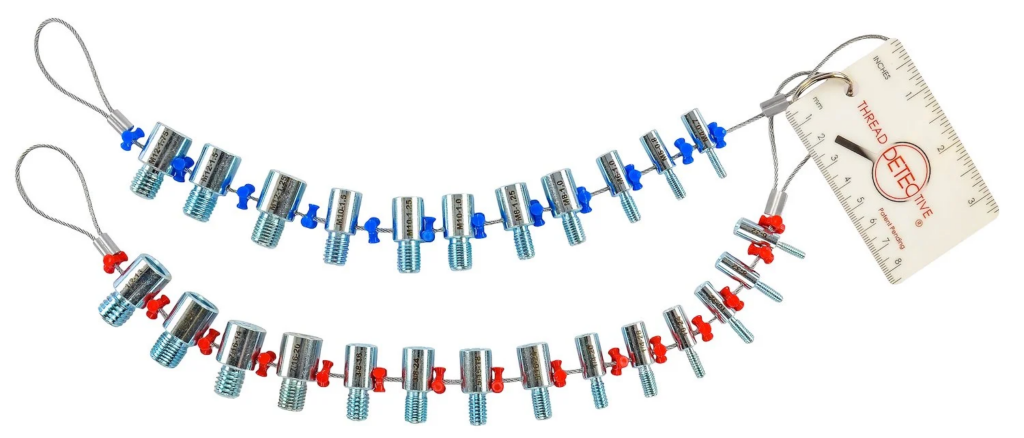

Using a thread pitch gauge is the most accurate way to confirm this measurement. Matching thread pitch is critical to ensure your lug nuts fit properly.

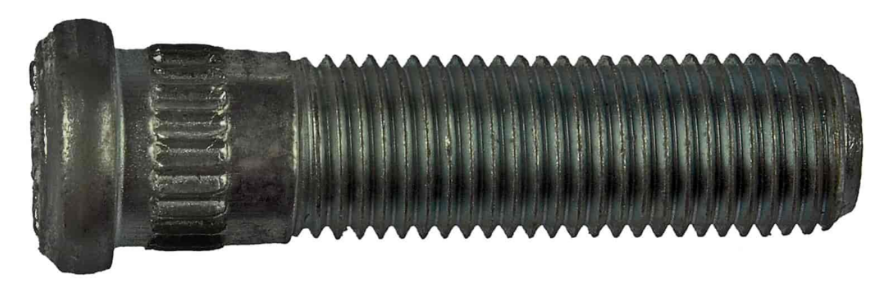

Step 4: Measure Knurl Diameter
The knurl is the splined section just below the stud head that presses into the hub. Knurl diameter must match the hole in the hub for proper retention.
Use a caliper to measure across the widest part of the knurl. This dimension is often slightly larger than the hub hole to create an interference fit.
If the knurl diameter is too small, the stud may spin during lug nut installation. If it is too large, installation can damage the hub.

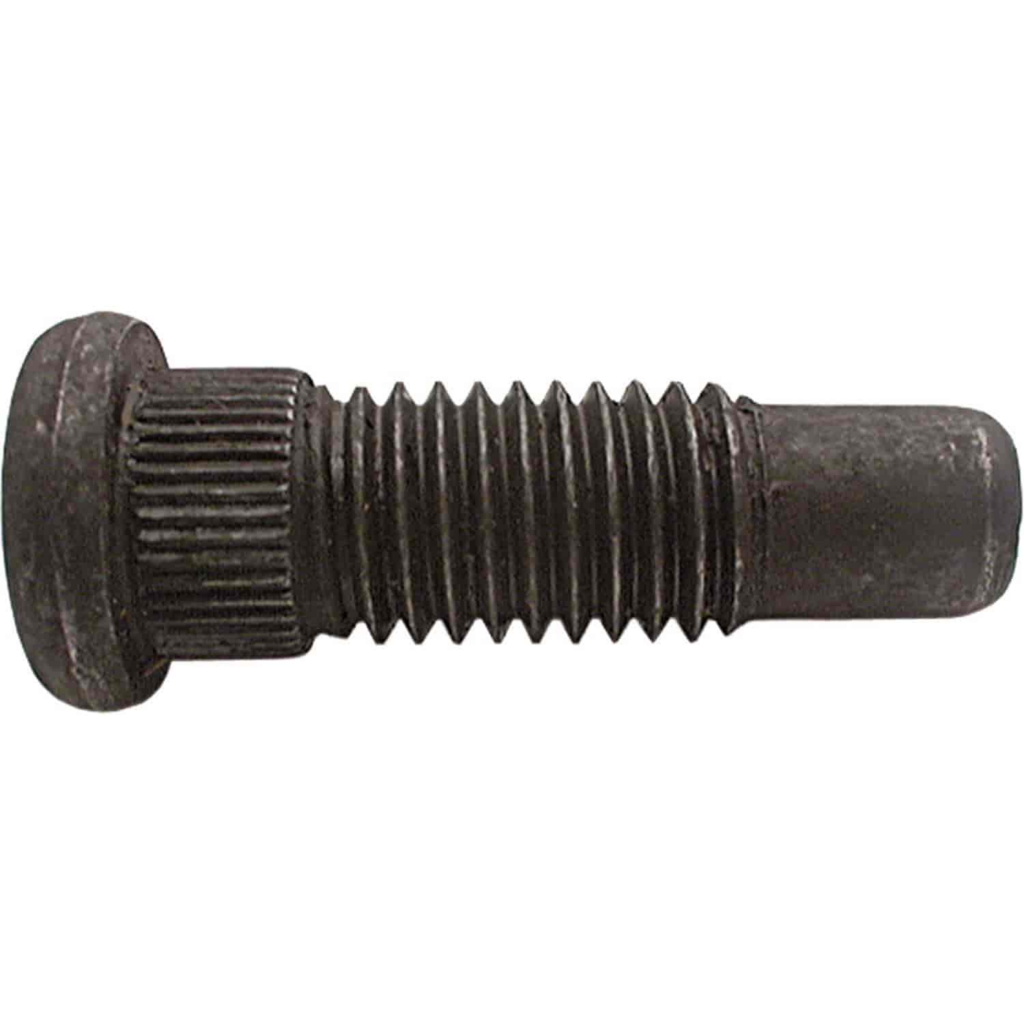

Step 5: Check Shoulder Length And Design
Some wheel studs have a shoulder or unthreaded section between the head and threads. Measuring this length can be important in certain applications.
Also verify whether the stud is press in, screw in, or designed for a specific type of hub.
When To Upgrade Wheel Studs
Upgrading to longer wheel studs is common when installing aftermarket wheels with thicker mounting pads or when using wheel spacers. Performance applications may also benefit from stronger studs made from high strength materials.
Always ensure you maintain proper thread engagement. A general guideline is that the lug nut should engage at least the diameter of the stud in thread length.
Finding The Right Wheel Studs At JEGS
Accurate measurements make selecting replacement or upgraded wheel studs straightforward. At www.jegs.com, you will find a wide selection of wheel studs in various lengths, thread sizes, and materials for street and performance vehicles.
If you need help confirming measurements or selecting the correct studs for your wheels and hubs, the JEGS Tech Specialists are available to help you choose components that ensure safe and secure wheel installation.
