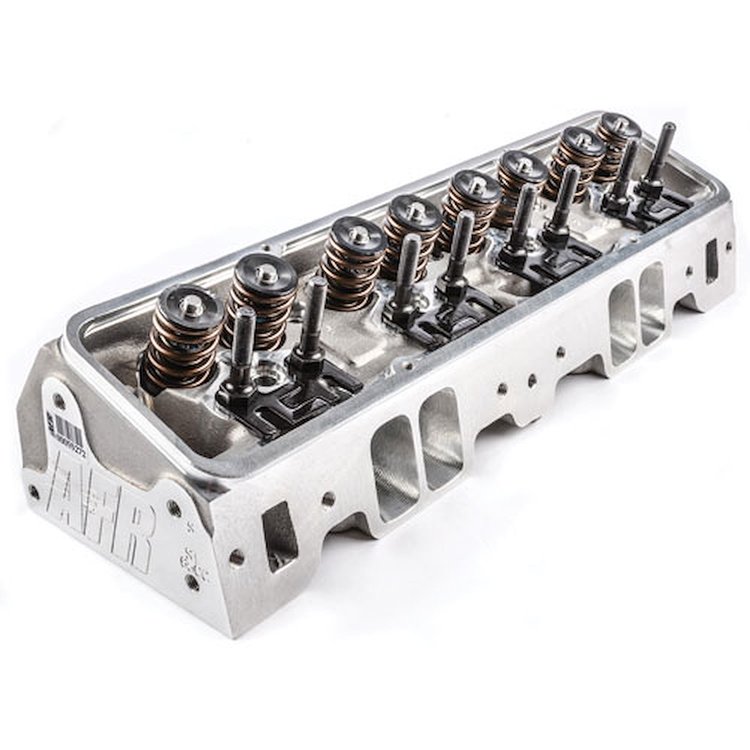

- AFR Small Block Chevy 195cc Eliminator Street Aluminum Cylinder Heads
AFR - Airflow Research 195cc Eliminator Street Aluminum Cylinder Heads SB-Chevy
033-1034
Items You Need
Street Eliminator Heads - Straight Spark Plug Design
| Small Block Chevy 195cc Eliminator Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-Angle Valve Job | |
| Intake Valve, 2.050'' x 4.903'' o.a.l. | |
| Exhaust Valve, 1.600'' x 4.955'' o.a.l. | |
| 1.290'' OD Hydraulic Roller Dual Valve Spring, 135 lbs. on seat, .600'' maximum lift, max RPM 6300-6500 | |
| 7º Manley 4140 Chrome Moly Retainers | |
| 7º Valve Locks | |
| 3/8'' Rocker Studs | |
| Adjustable 5/16'' Guide Plates | |
| Viton Valve Seals | |
| Hardened Spring Cups | |
| Intake Valve Seats | |
| Exhaust Valve Seats | |
| Bronze Valve Guides | |
| Small Block Chevy 195cc Eliminator Street Head Specifications | |
| Head Torque w/Moly Lube | 65-70 Ft. Lbs. |
| Rocker Stud Torque | 55 Ft. Lbs. |
| Intake Port Gasket, 1.280'' x 2.090'' w/ 3/8'' radius | Fel-Pro 375-1205 - DO NOT PORT MATCH Intake Manifold to Fel-Pro Gasket. |
| Exhaust Port Gasket | Fel Pro 375-1404 |
| Head Gasket | 350ci Fel Pro 375-1003 400ci Fel Pro 375-1014 |
| Head Bolts & Studs | Standard ARP |
| Head Bolt Washers | Manley Standard |
| Stud Girdle | Standard |
| Suggested Manifold | AFR p/n 033-4802 or Edelbrock Vic Jr p/n 350-2975 or Super Victor p/n 350-2925 |
| Spark Plug Starting Range | AC FR3LS or 41629 |
| Combustion Chambers | 65cc |
| Spring Pocket can be cut to 1.625, no deeper. | |
| Valve Spacing | Standard GM L98 |
| Rocker Arms | Standard |
| Valve Angle | 23° |
| Angle Mill | .008'' per cc |
| Flat Mill | .006'' per cc |
| NOTE: | Flat and Angle mills might require a .120'' thick head gasket. |
Specifications:
The Ultimate Bolt-on Emissions Legal Street Weapon!
The AFR Emissions Legal (versions from 1969-94 with heat riser, CARB EO #D-250-2), 195cc intake port small block Chevy cylinder heads are available in your choice of straight or L98 angle plug versions. These cylinder heads feature a 65cc or 75cc combustion chamber with a 64cc exhaust port and a 3/4 in. thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8 mm diameter stem, 2.050 in. (comp package has 2.080 in.) intake valve and 1.600 in. exhaust with AFR's hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of 2000 rpm to 6500 rpm, 23° valve angle, and standard valve spacing make this the perfect street head for 350-400 ci engines from 1955-1986.
Also available for 1987 to 1995 cast iron head engines with center bolt valve covers and two center intake bolts at 72° angle, AFR head p/n 033-1041 (dual valve cover bolt pattern is standard — no extra parts required). Exhaust port and bolt pattern are raised 3/32 in. over GM L98 cylinder heads, so this rarely affects header or chassis fitment.
Can I run the Lunati Voodoo Hydraulic Flat Tappet Camshaft and Lifter Kit Chevy Small Block 262-400 Lift: .504" /.525" with heads? Part Number: 638-10120704LK. My concern is springs.
What do I need to do to be able to run Lunati 73943 valve springs on the the AFR head 033-1034? or are they compatible withe the supplied retainers?
