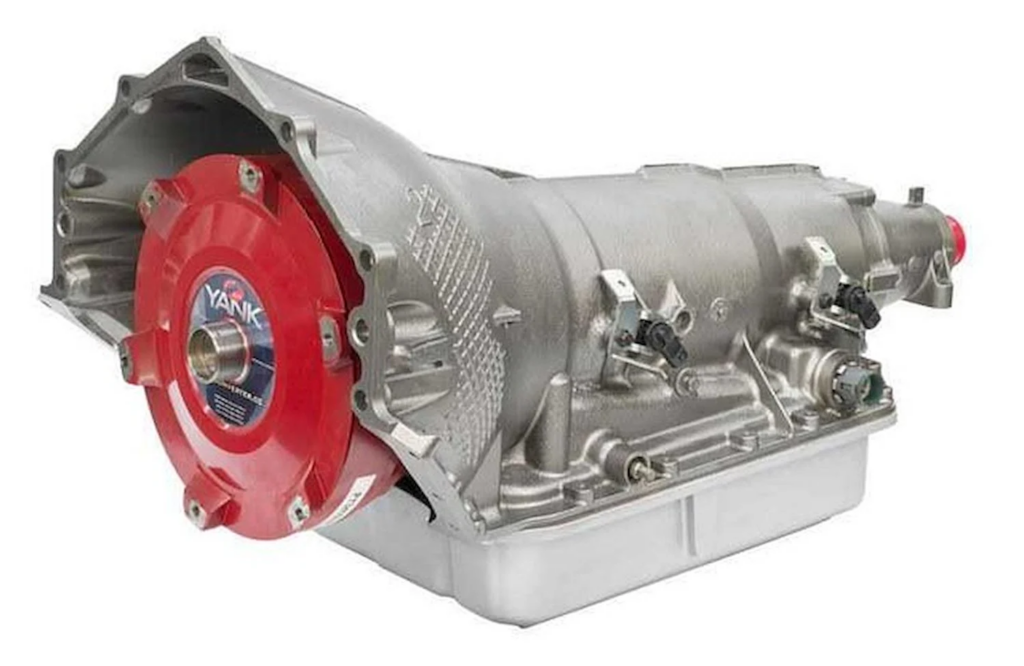

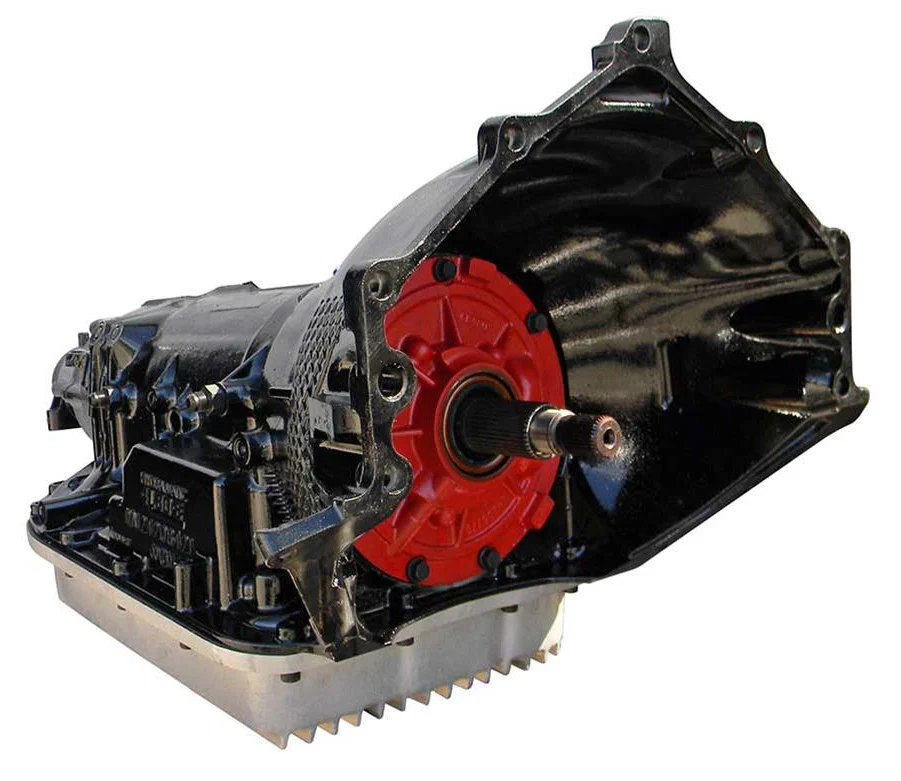

The 4L80E transmission is known for strength, durability, and its ability to handle serious torque. Found in heavy duty GM trucks, vans, and performance builds, this electronically controlled four speed automatic is a popular upgrade for high horsepower street cars and towing applications. If your 4L80E is slipping, shifting erratically, or showing signs of wear, a rebuild may be the best way to restore performance and reliability.
This 4L80E transmission rebuild buying guide covers what typically fails, what parts you should replace, and how to choose components that match your power level and intended use.
Why Rebuild A 4L80E?
The 4L80E is built to handle more torque than lighter duty transmissions, but high mileage, towing, heat, and performance upgrades can still cause wear. Common signs that a rebuild is needed include slipping in one or more gears, harsh or delayed shifts, burnt transmission fluid smell, metal debris in the pan, or loss of overdrive.
Rebuilding allows you to replace worn friction materials, seals, and bushings while upgrading critical components for improved durability.
Common 4L80E Failure Points
Although strong, the 4L80E has several known wear areas. Clutch packs can wear out over time, especially in heavy vehicles or under increased horsepower. The intermediate sprag and overrun components may show damage in high load applications.
High mileage units may also have worn bushings, seals, and thrust washers. Valve body wear and solenoid issues can contribute to shift problems in electronically controlled units.
Inspecting these areas carefully during teardown helps determine what should be replaced or upgraded.
Basic Rebuild Kit Vs Master Rebuild Kit

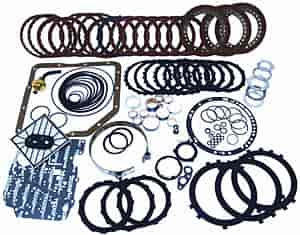

A basic rebuild kit typically includes new friction clutches, steel plates, seals, and gaskets. This option may be sufficient for a stock rebuild when hard parts are still in good condition.
A master rebuild kit usually includes additional components such as a band, bushings, thrust washers, and upgraded friction materials. For high mileage or performance applications, a master kit is often the better choice.
Choosing the right kit depends on your vehicle’s power level and how it will be used.
Upgraded Clutches And Performance Components

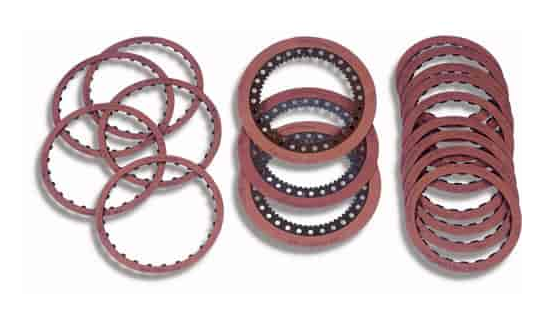

If your 4L80E is behind a high torque engine or used for towing, upgraded clutch materials can improve holding capacity and heat resistance. Performance friction materials reduce slippage and extend service life under load.
Heavy duty intermediate sprags and reinforced hard parts are also available for builds that see aggressive driving or racing conditions.
Matching internal upgrades to your engine output helps prevent repeat failures.
Valve Body And Shift Improvements

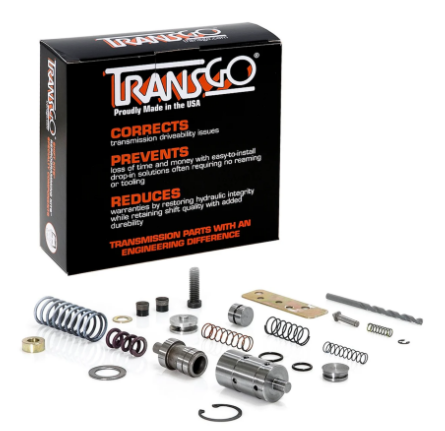

Shift kits and upgraded valve body components can improve shift firmness and durability. Firmer shifts reduce clutch slippage and heat buildup, which are common causes of transmission wear.
Because the 4L80E is electronically controlled, proper tuning is essential. Transmission calibration should match the upgraded internal components to ensure correct shift timing and line pressure.
Torque Converter Selection
Replacing the torque converter during a rebuild is highly recommended. A worn converter can contaminate fresh fluid and reduce overall performance.
Performance builds may benefit from a torque converter matched to engine characteristics, camshaft profile, vehicle weight, and rear gear ratio. Selecting the correct stall speed improves drivability and acceleration.
Supporting Components And Cooling

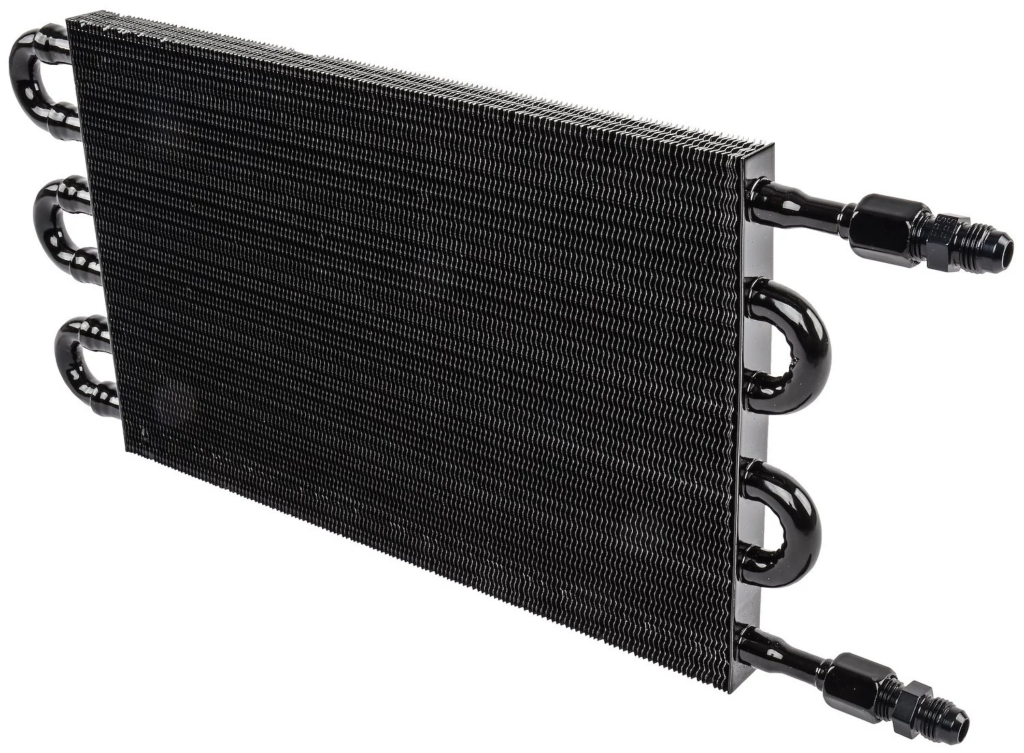

Heat is one of the biggest threats to automatic transmissions. Installing a quality transmission cooler can significantly extend the life of your rebuilt 4L80E, especially in towing or high performance applications.
Replacing the transmission filter, inspecting cooler lines, and using high quality fluid are all part of a complete rebuild process.
Choosing The Right 4L80E Rebuild Parts
Every build is different. A stock daily driver requires different components than a boosted street car or heavy duty tow vehicle. Planning your rebuild around realistic power goals and usage prevents overspending or underbuilding.
At www.jegs.com, you will find a wide selection of 4L80E rebuild kits, upgraded clutch packs, hard parts, torque converters, and transmission accessories to support both stock and performance applications.
If you need help selecting the right components for your 4L80E transmission rebuild, the JEGS Tech Specialists are available to guide you toward parts that match your vehicle, power level, and long term reliability goals.
