LS engine swaps have become one of the most popular upgrades in the performance world. Whether you are installing an LS engine into a classic muscle car, truck, or project vehicle, choosing the right automatic transmission is just as important as selecting the engine itself. The transmission must handle the power, fit the vehicle, and provide the driving characteristics you want.
Several automatic transmissions work extremely well with LS engines. The best option depends on horsepower level, intended use, and budget.
Why Transmission Choice Matters in an LS Swap
An LS engine can produce impressive horsepower even in stock form. Modified LS engines can easily exceed 500 horsepower, and boosted combinations often push far beyond that. The transmission must be strong enough to handle the torque and provide reliable performance.
Compatibility is also important. Many LS engines use modern electronic transmissions that require proper wiring and control modules. In some builds, builders choose older hydraulic transmissions to simplify the swap.
The right transmission ensures smooth operation, proper gear ratios, and long term durability.
4L60E Transmission
The 4L60E is one of the most commonly used automatic transmissions for LS engine swaps. It was widely installed in GM trucks and performance vehicles and is designed to work with LS engine electronics.
This transmission offers four forward gears and overdrive, making it a good option for street driven vehicles that spend time on the highway. The overdrive gear helps reduce engine rpm at cruising speeds, improving drivability and fuel efficiency.
For moderate horsepower builds, a properly rebuilt 4L60E can provide reliable performance. Companies such as TCI Automotive and B&M Racing offer upgraded components and performance versions designed to handle increased power.
4L80E Transmission
The 4L80E is often considered the heavy duty version of the 4L60E. It shares many design features with the legendary Turbo 400 transmission but includes overdrive and electronic control.
Because of its strength, the 4L80E is a popular choice for high horsepower LS builds, trucks, and drag racing applications. It is capable of handling significantly more torque than the 4L60E while still offering overdrive for highway driving.
Builders frequently choose the 4L80E when planning turbocharged or supercharged LS combinations.

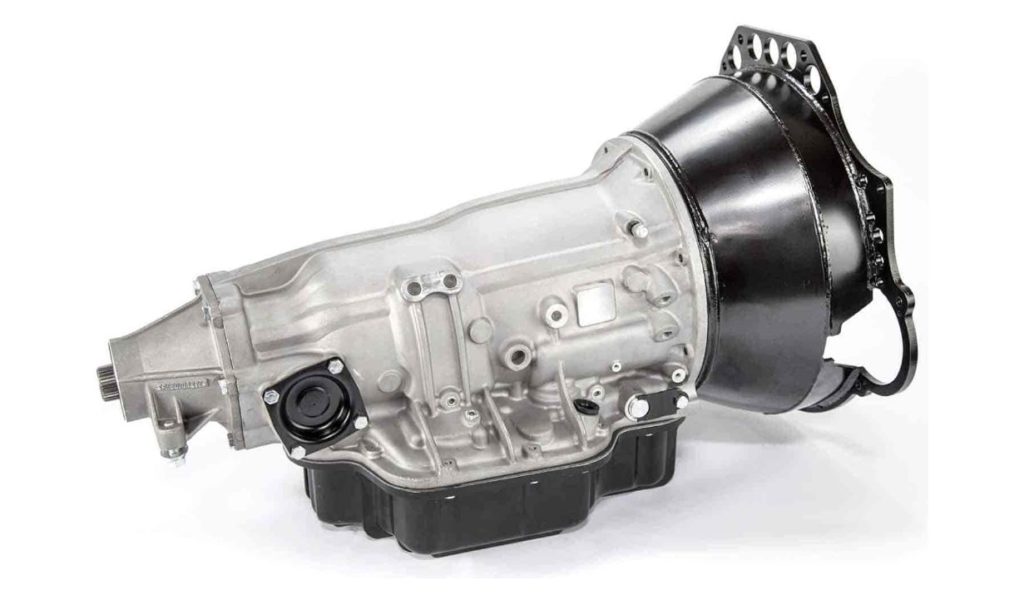

Turbo 400 Transmission
The Turbo 400, often called the TH400, is one of the most respected automatic transmissions in performance racing. It is known for exceptional durability and simplicity.
Unlike modern transmissions, the TH400 uses hydraulic control instead of electronic control. This makes it attractive for LS swaps where builders want to avoid complex wiring and computer integration.
Performance versions from companies like TCI Automotive are widely used in drag racing and high horsepower street cars.
The main tradeoff is the lack of overdrive, which can lead to higher engine rpm during highway driving.
6L80 Transmission
For modern performance builds, the 6L80 is another popular option. This six speed automatic transmission was used in many late model GM performance vehicles and trucks equipped with LS engines.
The additional gears provide improved acceleration and efficient highway cruising. The 6L80 requires electronic control and proper tuning, but it offers excellent performance when paired with an LS engine.
Builders often choose this transmission for restomod projects and modern street performance vehicles.
Choosing the Best Transmission for Your LS Swap
The best automatic transmission for an LS engine swap depends on your goals.
Street driven vehicles that need overdrive often work well with the 4L60E or 4L80E. High horsepower drag cars frequently rely on the strength of the Turbo 400. Modern builds looking for improved performance and efficiency may benefit from the six speed 6L80.
Other factors such as crossmember placement, driveshaft length, transmission mount location, and shifter compatibility should also be considered during the swap.
Supporting Components for LS Transmission Swaps
An LS transmission swap typically requires several supporting components including transmission mounts, crossmembers, flexplates, torque converters, and transmission controllers.
Upgraded torque converters from manufacturers such as TCI Automotive and B&M Racing can improve launch performance and overall drivability.
Transmission coolers and fluid management components are also important for maintaining proper operating temperatures.
Find LS Swap Transmission Parts at JEGS
Selecting the right transmission is one of the most important decisions in any LS engine swap. The right combination of strength, gear ratios, and compatibility ensures reliable performance on the street or at the track.
At www.jegs.com, you will find automatic transmissions, torque converters, transmission coolers, controllers, and LS swap components from trusted manufacturers such as TCI Automotive and B&M Racing.
If you need help choosing the best automatic transmission for your LS engine swap, the JEGS Tech Specialists are available to help you select the right drivetrain components for your build.
