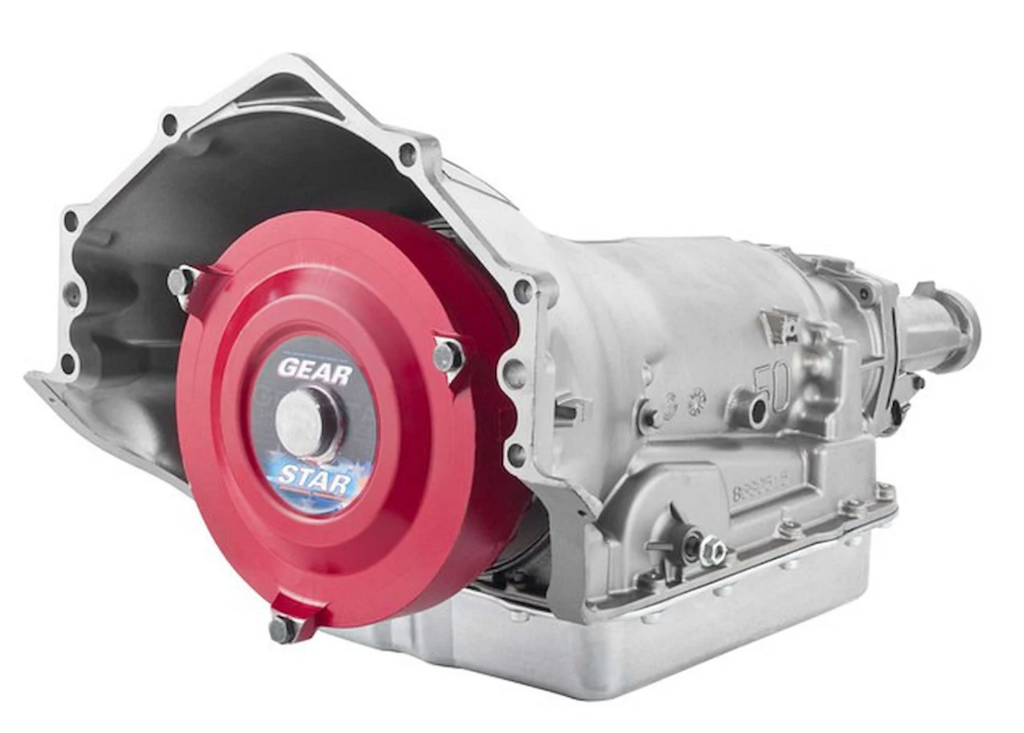

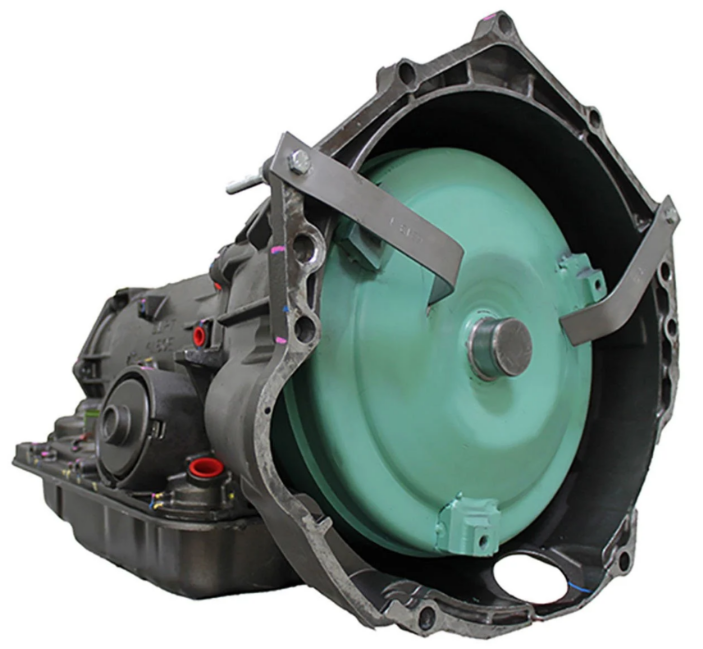

The 4L60E transmission has been a staple in GM cars and trucks for decades. Found in everything from Silverado pickups to Camaro and Corvette models, this electronically controlled four speed automatic is popular for both daily driving and performance builds. If your 4L60E is slipping, shifting harshly, or failing to move the vehicle, a rebuild may be the most cost effective solution.
This 4L60E transmission rebuild buying guide explains what typically fails, what parts you should consider replacing, and how to choose the right components for your build.
Why Rebuild A 4L60E?
The 4L60E is durable in stock form, but higher mileage, towing, performance upgrades, and aggressive driving can accelerate wear. Common symptoms that point toward a rebuild include slipping between gears, delayed engagement, burnt fluid smell, shuddering shifts, or complete loss of drive.
Rebuilding allows you to replace worn clutches, seals, and hard parts while upgrading weak points to handle more power.
Common 4L60E Failure Points
Understanding typical problem areas helps you choose the right rebuild components.
The 3-4 clutch pack is one of the most common failure points, especially in higher horsepower or heavy vehicle applications. Worn sun shells can also cause loss of reverse or second gear. Input drums, sprags, and valve body components are other areas that may require attention.
High mileage units often show wear in bushings, seals, and thrust washers. Addressing these during a rebuild helps restore reliability.
Basic Rebuild Kit Vs Master Rebuild Kit
A basic rebuild kit typically includes friction clutches, steel plates, seals, gaskets, and O rings. This is suitable for stock applications where hard parts are still in good condition.

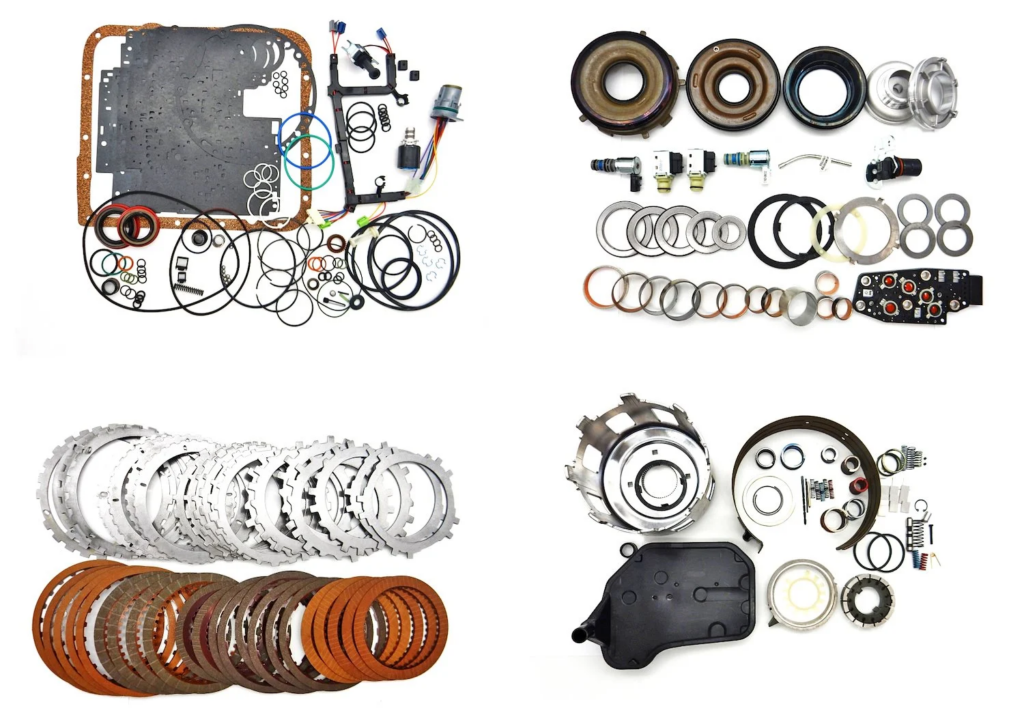

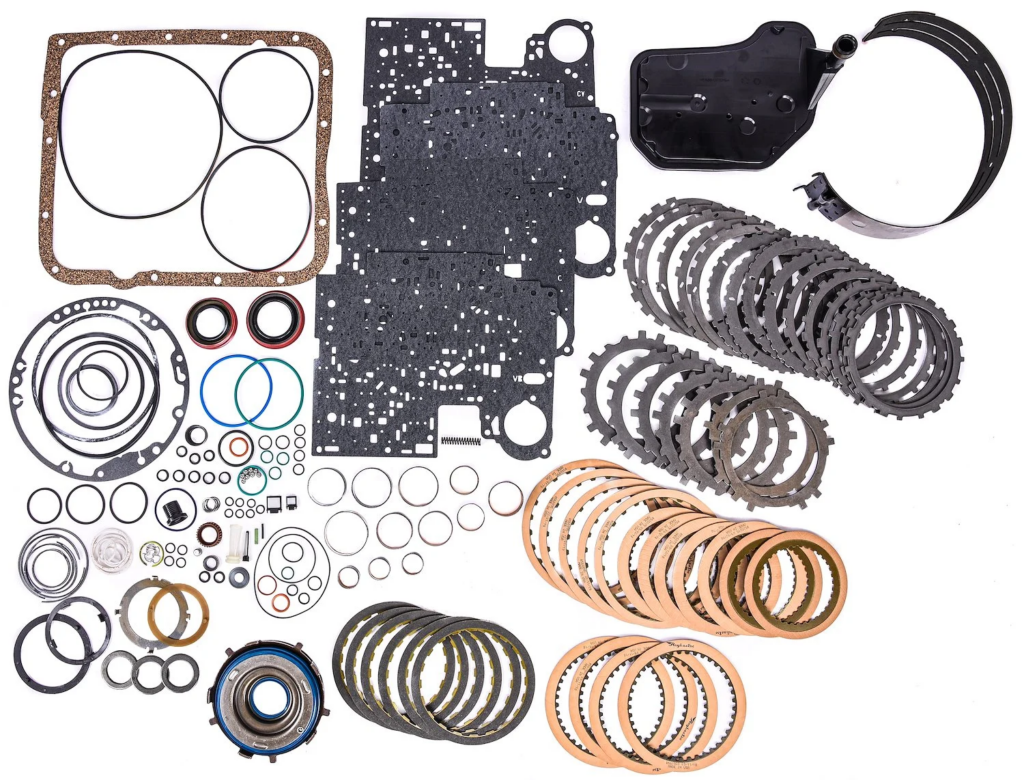

A master rebuild kit usually includes additional components such as a new band, bushings, thrust washers, and sometimes upgraded clutches. For higher mileage units or performance builds, a master kit is often the better choice.
Selecting the correct kit depends on the condition of your transmission and your performance goals.
Upgraded Clutches And Bands

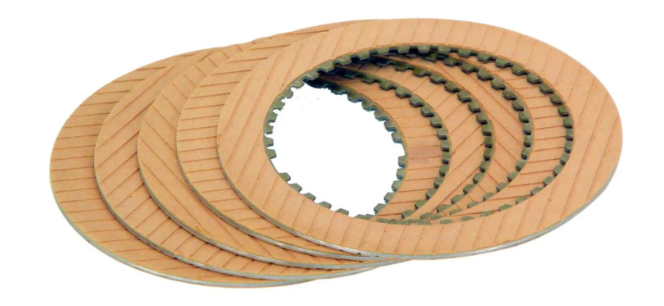

If your vehicle makes more power than stock or sees towing duty, consider performance friction materials. Upgraded clutch packs provide greater holding capacity and improved heat resistance.

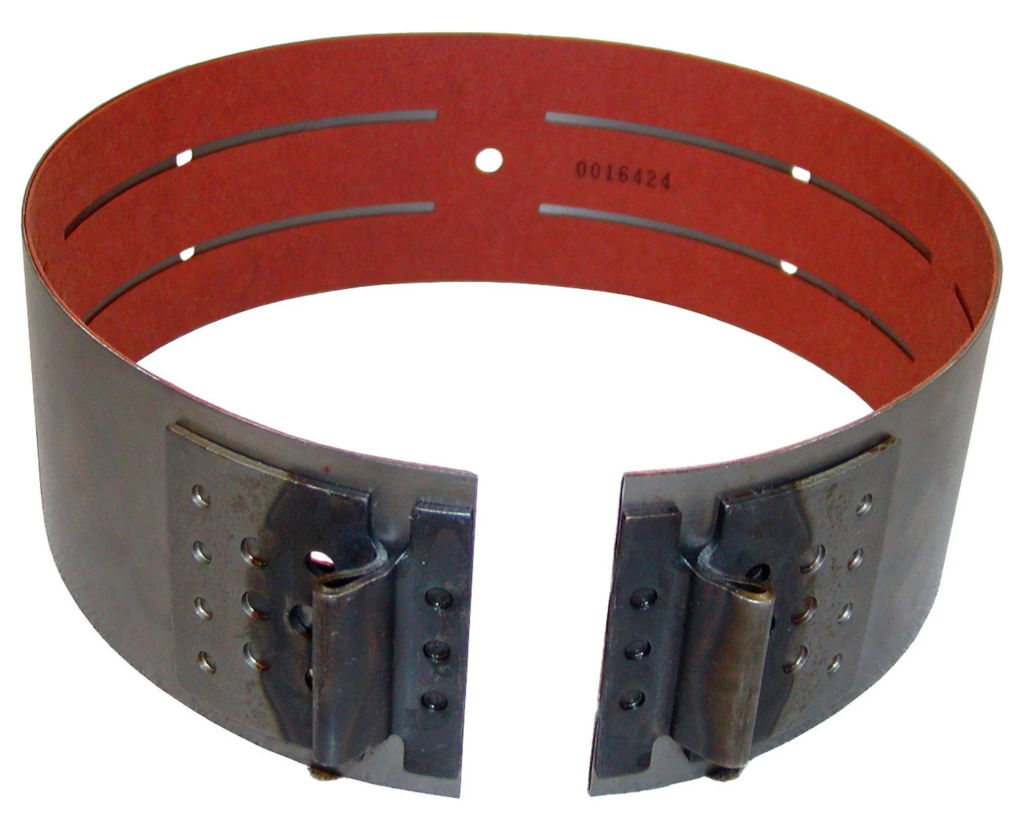

Improved bands can also enhance durability, especially under higher line pressure.
Matching friction material to your intended use helps ensure long term reliability.
Shift Kits And Valve Body Upgrades

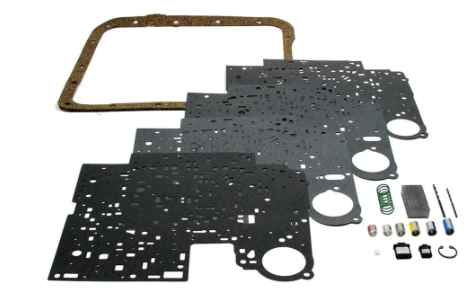

Shift kits are a popular addition during a 4L60E rebuild. These kits recalibrate the valve body to improve shift firmness and reduce clutch slippage. Firmer shifts reduce heat and extend clutch life.
Valve body upgrades can also address common hydraulic issues and improve overall shift quality.
Proper installation and calibration are essential for best results.
Hard Parts And Reinforcements

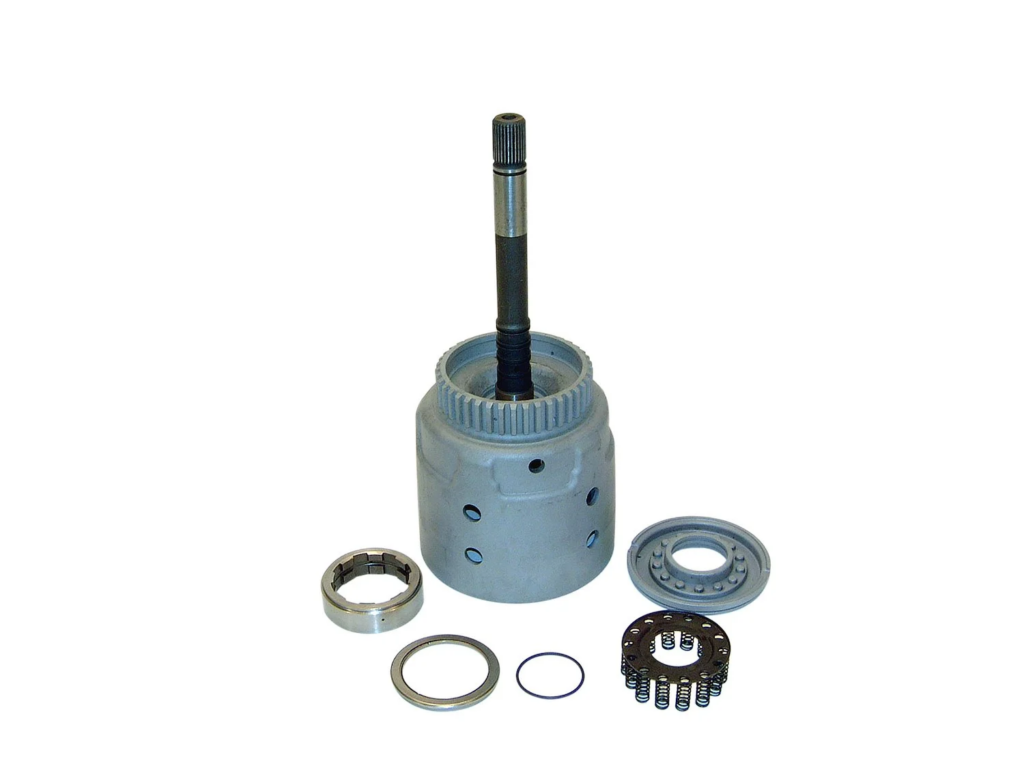

Some rebuilds require replacement hard parts such as the sun shell, input drum, or reaction shell. Heavy duty versions of these components are available and can improve durability in high torque applications.
Inspecting these parts carefully during teardown is critical. Reusing worn hard parts can shorten the life of the rebuild.
Torque Converter Considerations

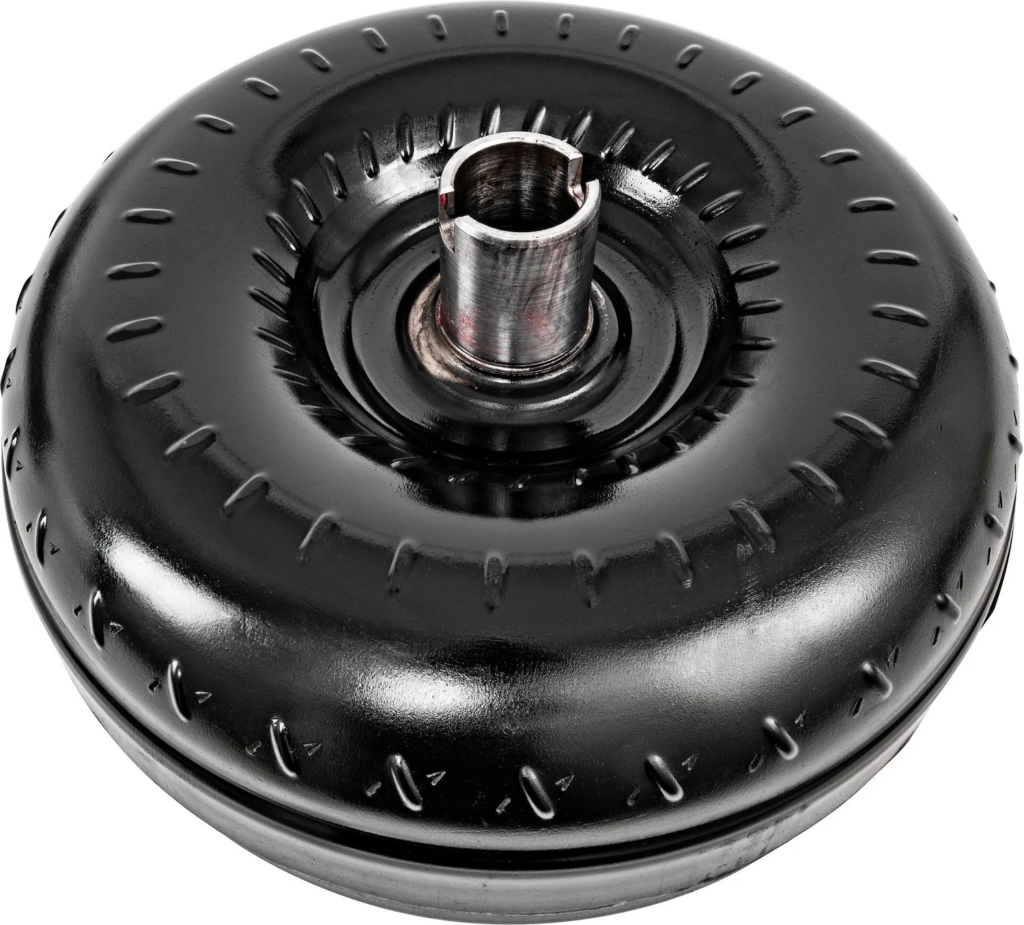

A rebuild is the ideal time to replace or upgrade the torque converter. A worn converter can contaminate fresh fluid and damage new components.
Performance builds may benefit from a converter matched to camshaft profile, vehicle weight, and rear gear ratio. Choosing the right stall speed improves drivability and acceleration.
Supporting Components
Do not overlook supporting items such as a transmission filter, fluid, cooler lines, and an auxiliary transmission cooler. Heat is one of the main causes of automatic transmission failure.
Upgrading to a quality cooler can significantly extend transmission life, especially in trucks or performance vehicles.
Choosing The Right 4L60E Rebuild Parts
When selecting parts, consider how the vehicle will be used. A stock daily driver requires different components than a high horsepower street car or towing vehicle.
Quality parts, proper installation, and correct clearances are all critical to a successful rebuild.
At www.jegs.com, you will find a wide selection of 4L60E rebuild kits, upgraded clutches, hard parts, torque converters, and transmission accessories to match your application.
If you are unsure which components are right for your 4L60E transmission rebuild, the JEGS Tech Specialists are available to help you choose parts that match your power level, driving style, and long term reliability goals.
