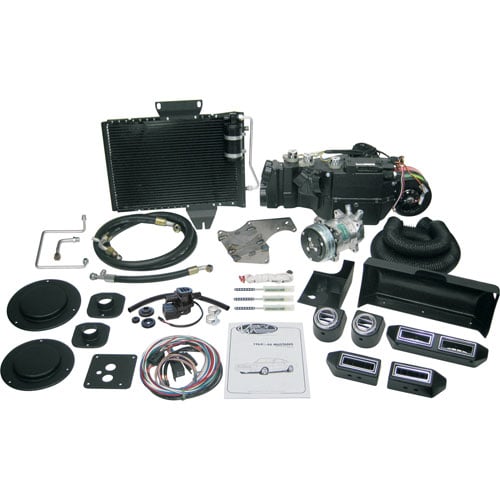

Charging your car's AC system might seem like a daunting task, but with the right tools and knowledge, you can do it yourself using manifold gauges. This complete guide will walk you through how to charge air conditioning with gauges, providing you with the step-by-step instructions needed to get your AC blowing cold air again.

Understanding Your Manifold Gauges

Before you start charging A/C system with gauges, it's essential to understand how manifold gauges work and how they help you measure the pressure levels in your car's air conditioning system.

Components Of Manifold Gauges

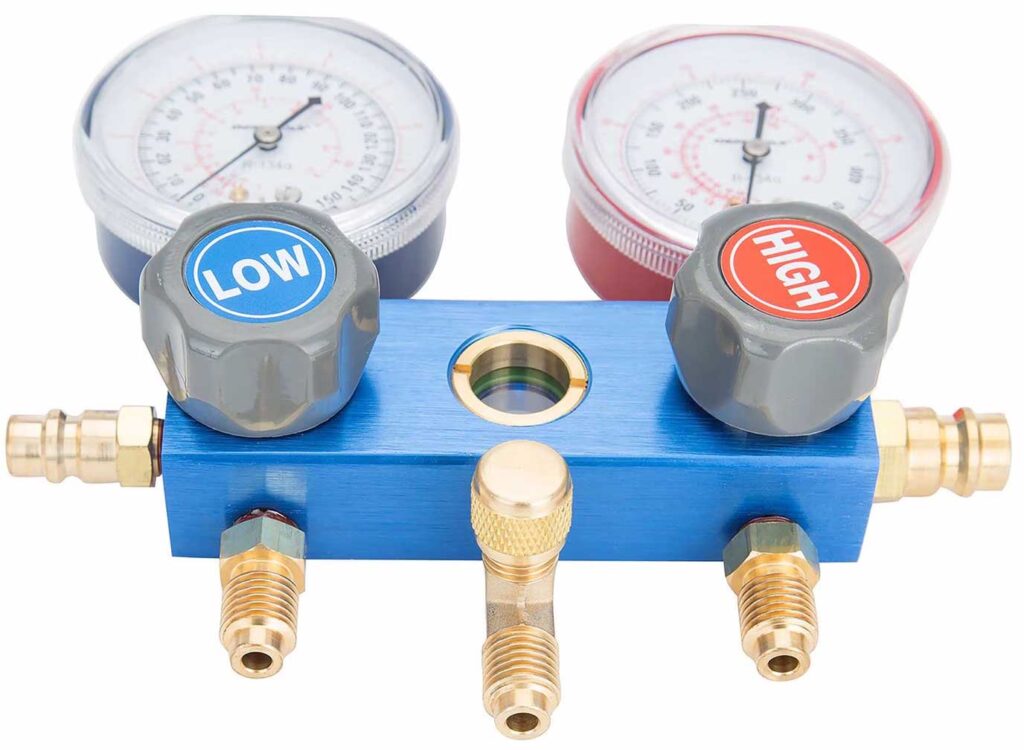

Manifold gauges typically consist of three main components:

• High-Pressure Gauge (Red): Measures the pressure on the high side of the AC system.
• Low-Pressure Gauge (Blue): Measures the pressure on the low side of the AC system.
• Center Hose (Yellow): Connects to the refrigerant source, allowing you to charge the system.

Understanding how each component functions is crucial for on how to use AC gauges car procedures.

Preparing The Gauges

1. Inspect the Gauges: Before connecting them to your vehicle, check for any visible damage or wear to the hoses and connections.
2. Calibrate the Gauges: Ensure the gauges are properly calibrated for accurate readings. This step is vital for maintaining the correct pressure levels during the charging process.

Charging Your AC System

Once you're familiar with the manifold gauges, you can proceed with charging A/C system with gauges to get your car's air conditioning back in working order.

Step-by-Step Instructions

1. Connect the Gauges to the AC System: Attach the blue hose to the low-pressure port and the red hose to the high-pressure port on your car’s AC system. Make sure the connections are secure.
2. Check System Pressure: With the engine off, check the pressure readings on the gauges to determine if your system is low on refrigerant.
3. Start the Engine: Turn on your car’s engine and set the AC to its maximum cooling setting. This should cause the interior blower fan to be on high speed as well as the radiator cooling fans to turn on.
4. Add Refrigerant: Open the valve on the refrigerant can and allow it to flow into the system through the yellow center hose. Monitor the gauges as you add refrigerant to ensure that the levels stay within the manufacturer's recommended range.
5. Close the Valves: Once the desired pressure level is reached, close the valves on the manifold gauges and disconnect the hoses.

Properly charging the AC system ensures that your car maintains optimal cooling efficiency, especially during hot weather.
