The Holley Sniper EFI system has become one of the most popular choices for enthusiasts looking to modernize their fuel delivery. While the system offers incredible reliability and tunability, the wiring harness it comes with is intentionally long to accommodate a wide range of vehicle configurations. If you are looking to clean up your engine bay and tailor the harness to your specific build, shortening the Holley Sniper wiring harness is an option worth considering.
This guide explains why shortening the harness might be necessary, outlines the tools and terminals you need, and covers how to preserve important Holley seals in the process. Whether you want a professional finish or a functional improvement, these steps will help you get it done the right way.
Understanding The Need To Shorten Your Holley Sniper Wiring Harness

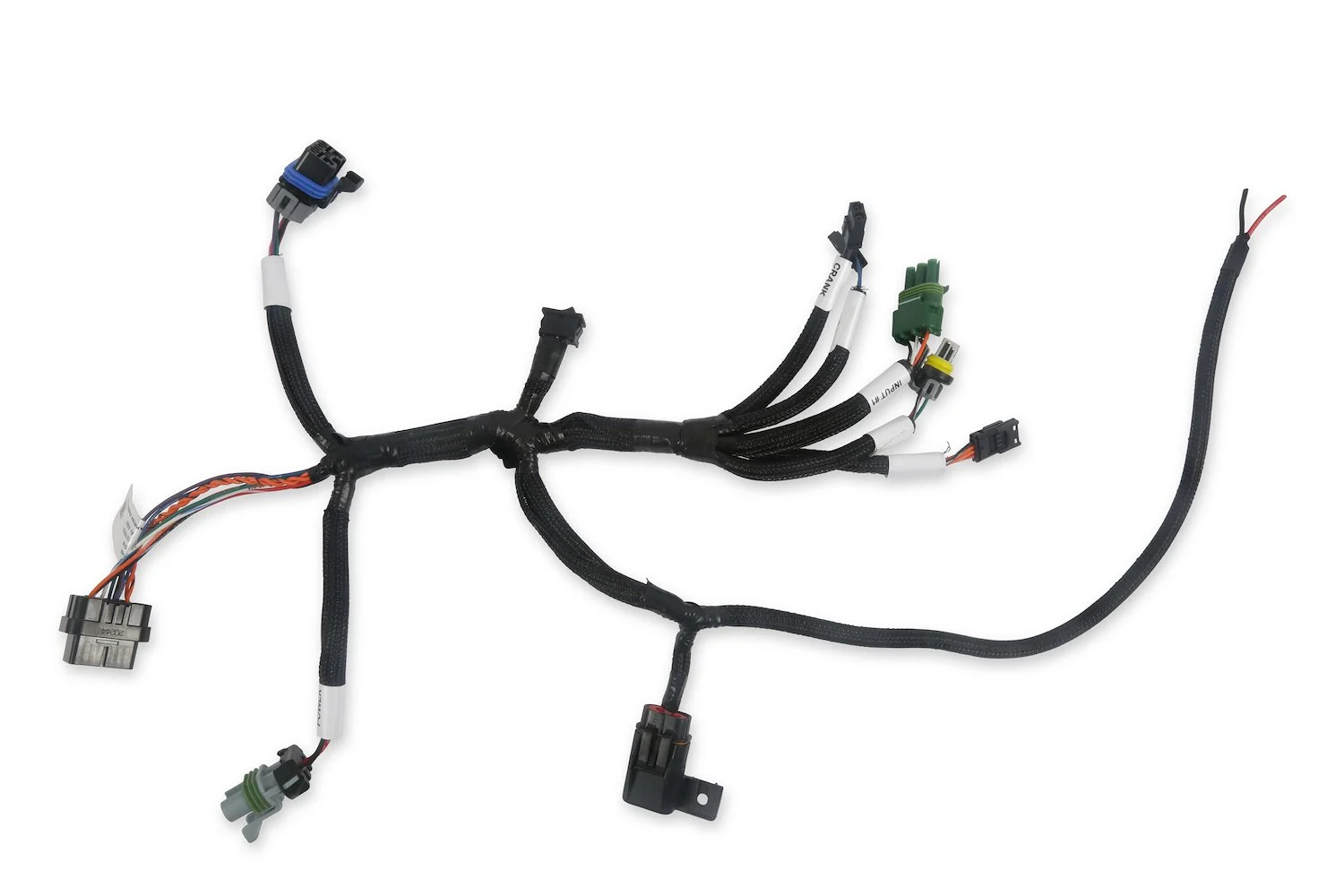

The Holley Sniper EFI harness is designed to fit everything from classic muscle cars to custom trucks and hot rods. Because of this, the lengths of the wires are often excessive when installed in tight engine bays or vehicles with centrally located ECUs. This can lead to cluttered routing, unnecessary slack, and visual disorganization.
Shortening the harness helps create a cleaner look, eliminates the need to coil or hide excess wire, and makes long-term maintenance easier. If you plan to route your wiring through the firewall, tuck it neatly behind panels, or optimize your loom layout, trimming the harness is a worthwhile improvement.
The harness segment most commonly shortened includes the wiring for the TPS, IAC, IAT, and MAP sensors. These sensors are often mounted close together, which makes long runs of extra wire unnecessary and inconvenient.
Essential Tools And Pins For Shortening The Holley Sniper Wiring Harness
When shortening a harness, you have two main options: cut and splice the wires or remove and re-pin the connectors. The best and cleanest method is to depin the wires from the connectors, trim them to length, and reinstall them using new pins. This avoids weak splices and creates a factory-quality result.
To complete this process, you will need:
- A pin extraction tool that matches your connector style
- Crimping tool suitable for small EFI terminals
- Heat shrink tubing or sealing boots
- High-quality wire strippers
- Replacement pins to shorten Holley Sniper wiring harness sections
- A multimeter for continuity checks
The terminals used in the Holley Sniper system are available from JEGS. It is essential to match the correct terminal type for each connector to ensure proper fitment and function.
You should also label each wire before removing it from the connector. This will prevent accidental miswiring when reinstalling the shortened wires. A label maker or masking tape and a fine-tip marker can work well for this task. Make sure you label the wire position if it is going into a multiwire connector as well.
Tips For Maintaining Holley Sniper Seals During The Process
Protecting your Holley seals during the wiring modification is critical for long-term performance and reliability. Each connector in the Sniper EFI system is sealed to prevent moisture, dirt, and oil intrusion that can lead to poor signal transmission or sensor failure.

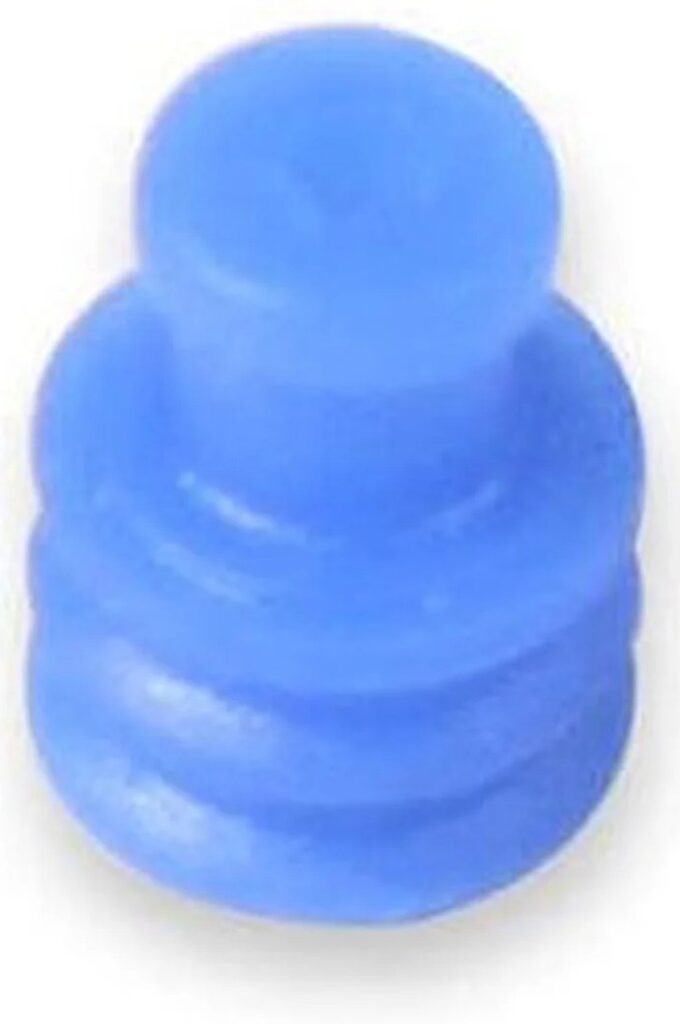

When shortening your harness, make sure to inspect and retain the rubber or silicone seals that surround each terminal. If any of these are damaged during disassembly, replace them with new ones sourced from Holley or a compatible EFI seal kit.
When reinstalling terminals, verify that the seals are seated correctly in the connector housing. Applying a small amount of dielectric grease can improve the seal and make future disassembly easier.
If you choose to cut and splice the wires instead of repinning, always use heat shrink tubing with a sealing adhesive. This will provide a moisture barrier and add mechanical strength to the repair. It is also helpful to stagger the splices to prevent bulky sections in the wiring loom.
Additional Tips For A Successful Install
- Measure twice, cut once. Ensure you leave enough wire slack for engine movement or routing flexibility.
- Use a continuity tester or multimeter to verify all wires have correct connections after modification.
- Avoid modifying multiple wires at once. Work on one wire at a time to keep the process organized and prevent mistakes.
- Secure the final loom with wire ties or expandable loom sheathing to protect the harness from heat and abrasion.
Final Thoughts
Shortening your Holley Sniper wiring harness is a great way to improve the fit, finish, and functionality of your EFI installation. Whether you are repinning connectors or using sealed splices, the key is to take your time, use the correct tools, and prioritize quality connections. With attention to detail, your engine bay can look cleaner and your EFI system can continue to run at peak performance.
If you need help identifying the right pins to shorten Holley Sniper wiring harness sections or need replacement Holley seals, JEGS carries a full line of EFI accessories and components. Contact a JEGS Tech Representative at 1-800-345-4545 for guidance or visit JEGS.com to explore all the parts and tools you need for your next upgrade.
