Milodon Off-Road Oil Pan Ford FE 390-428

Milodon 30550

697-30550

made in usa
jegs shipping
FREE Shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee

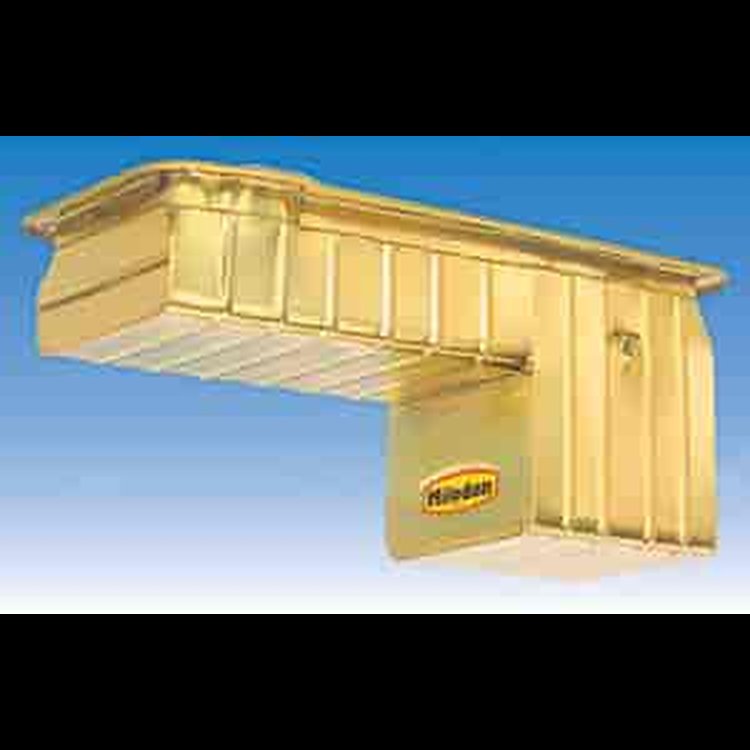

Milodon Off-Road Oil Pan Ford FE 390-428 $316.95
Off-Road Oil Pan
  • Ford FE 390-428
  • 4WD
  • Pickups & Broncos 78-Up
  • 8 Quarts & Filter
  • 10'' Deep Sump

  • Milodon 30550 Details

    Ford

    Designed for applications where extra rough terrain and jumping may be encountered, as well as for vans. Sump is moved to rear for additional differential clearance and increased capacity. Features horizontal baffles. Fits 390-428 engines in 4WD vehicles & vans exc. Bronco. Features factory hard style fitting to attach factory style screw-in dipstick tube.
    Uses Oil Pump Pickup Tube 697-18445
    Oil Pump Shaft 697-22550
    Oil Pan Gasket 697-40450
    Dipstick 697-22040

    Extra Dimensions
    Front Sump Depth: 4-1/2"
    Rear Sump Depth: 10"
    Sump Length: 8"
    Front of Pan to Sump: 14"

    Specifications:

    Gaskets Included
    No
    Quantity
    Sold individually
    Crank Scraper Included
    No
    Dipstick Provision
    Yes
    Hardware Included
    No
    Kicked Out
    no
    Kicked Out
    No
    Pickup Included
    No
    Stroker Clearanced
    yes
    Stroker Clearanced
    Yes
    Sump Style
    WET
    Sump Style
    Wet
    Windage Tray Included
    No
    Sump Location
    Rear
    Oil Pan Capacity
    8 quarts
    Oil Pan Depth (in.)
    10
    Oil Pan Finish
    Gold iridited
    Oil Pan Material
    Steel
    Maximum Stroke with OE Rod (in.)
    4.25
    Drain Plug Thread Size (in.)
    1/2-20
    Rear Main Seal Style
    2-piece
    Dipstick Location
    Driver
    Baffled
    Yes
    Manufacturer's Part Number:
    30550
    Shipping Weight:
    12.94
    Package Height:
    26
    Package Depth:
    13
    Package Width:
    11

    Milodon's Truck and Off-Road Oil Pans are designed with one-peice stamped steel and features ultra straight rails that ensures no gaskets leaks. Built-in horizontal baffle delivers ultimate oil control for light to heavy off-road use. These pans fit 4wd chassis applications.

    • For 4wd chassis applications
    • For rear sump
    • One-piece stamped steel
    • Ulta straight rails
    • Built-in horizontal baffle
    • Made in the U.S.A.

    JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.

    Items You Need
    Some parts are not legal for use in California or other states with similar laws / regulations
