Chevrolet Performance 12675871

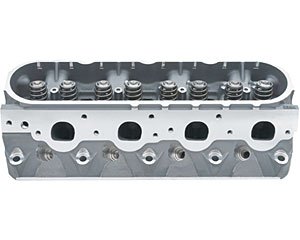

Chevrolet Performance LS-Series LS3 Cylinder Head, Assembled

809-12675871

Free Shipping Ships

$697.26
Chevrolet Performance LS-Series LS3 Cylinder Head, Assembled $697.26
Out of stock
3 left in stock
QTY
LS-Series LS3 Cylinder Head
  • Assembled
  • Sold Individually
  • Items You May Also Consider

    Chevrolet Performance 12675871 Details

    LS3 Aluminum Cylinder Heads

    Specifications:

    Shipping Weight:
    25.85
    Package Height:
    24
    Package Depth:
    10.5
    Package Width:
    12.5

    The LS3 Aluminum Cylinder Heads are stock replacement LS3/L92 heads manufactured from aluminum alloy and are available as bare castings to add your own components or fully assembled with intake and exhaust valves, valve stem seals, spring retainers, valve springs and valve locks. These heads can be used to replace worn or damaged units on your LS3 engine or as a performance upgrade on any LS engine with a 4" or larger bore!

    Features:
  • Manufactured from 319-T5 aluminum alloy
  • As-cast L92 style 260cc intake ports
  • 2.165" hollow stem intake valves
  • 1.59" solid stem exhaust valves
  • 15 degree valve angle
  • .550" max valve lift
  • D-shaped exhaust ports
  • As-cast 68.4cc combustion chambers
  • 14mm, 5/8" hex, 3/4" reach, taper-seat Angled spark plug
  • Bolt-down-type rocker arms
  • Center-bolt valve cover hold-downs
  • Fits any LS family engine with 4.00" bore or larger

    LS3 Cylinder Head Flow Chart
    Valve Lift Intake Flow Exhaust Flow
    .200151111
    .300208152
    .400256174
    .500294183
    .600316189

  • Easy Kits
