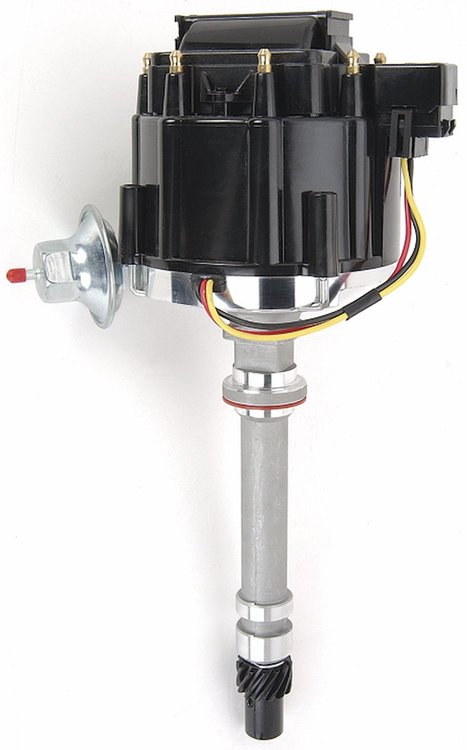

HEI Distributor For Small Block & Big Block Chevy
555-40002
Product Q&A
View Now
Click image to zoom
Video
Items You Need
JEGS 40004 - HEI Advance Curve Kit For 1974-1979 GM HEI Distributors
$7.99
JEGS 40300 - Spark Plug Wire Boot Guards, Black [Set of 8]
$29.99
JEGS 10552 - GM HEI Power & Tach Feed Wires [12 in. Wire Leads]
$5.99
JEGS 40620 - Billet Distributor Hold-Down Clamp Chevy: 90° V6, Small Block, and Big Block [Clear Anodized]
$20.89
JEGS 40650 - Bronze Distributor Gear Chevy V8
$33.99
| Ratings |
|---|
| Price |
| Brand |
Chevy HEI Distributors
Features:
- Adjustable vacuum advance
- High voltage coil for a hotter spark
- Coated weights for corrosion resistance
- Welded weight pins for durability
- Standard-type steel distributor gear for hydraulic or solid flat tappet cams
- Utilizes an O.E. 0.491 in. diameter shaft and will require a different drive gear for solid roller camshaft
- When installing in a non-HEI vehicle, Power & Tach Feed Wires 555-10552 is recommended
Specifications:
Part Type
Product Line
Advance Type
Vacuum and mechanical
Cap Style
Male/HEI
Computer-Controlled Compatible
No
Distributor Cap Color
Black
Distributor Gear Rotation
Standard
Distributor Type
HEI/Breakerless
Engine Make/Size
Chevy Small Block (262-400)
Gear Material
Steel
Housing Finish
Natural
Housing Material
Aluminum
Ignition Box Required
No
Marine Use
No
Mechanical Tach Drive
No
Package Depth
7.60
Package Height
17.50
Package Width
9.80
Part Category
Performance Parts
Part Fitment
Semi Universal
Quantity
Sold individually
Shipping Weight
6.40
Slip Collar
No
Trigger Style
Magnetic
40002 is rated
out of
5 by
60.
Rated 5 out of
5
by
Coconutbay from
Better than what I had
Nothing too exciting here. It came in a well-packaged box. We installed it. My Chevy runs better.
Date published: 2023-06-07
Rated 5 out of
5
by
Anthony from
Nice Distributor for a stock replacement
Makes $$ sense in not having to replace parts on a 44-year-old Distributor on my 1979 C20
Date published: 2022-10-11
Rated 5 out of
5
by
Tman from
Jeg's HEI DISTRIBUTOR
Great price and quality. First one arrived destroyed and in pieces. Returns have become a huge hassle. Resolved in the end.
Date published: 2022-07-12
Rated 5 out of
5
by
The company is great on p from
GREAT PRICE AND GREAT SERVICE
The company is great on product and service I would recommend there stores to anyone that's looking for automotive parts and equipment.
Date published: 2021-10-29
Rated 5 out of
5
by
Ken from Maine from
Jegs has the best deals on very good product
It is a great replacement unit, fits and works perfect at an affordable price thanks to Jegs.
Date published: 2021-10-26
Rated 5 out of
5
by
Deadeye6140 from
Great Buy
I have a 1968 Chevelle that was running a points system. I purchased this distributor in attempt to relieve some frustration with timing issues. I also had to purchase "GM HEI Power & Tach Feed Wires 12" Wire Leads" for the old wiring setup and my after market tach. Ripped the motor down, set it to TDC and dropped this baby in. Started right up, and sounded beautiful. You can not beat it for the price and to get things running right.
Also, this item was delivered faster than expected. I received it a full 4 days before the expected delivery. Way to to Jegs.
Date published: 2021-09-08
Rated 5 out of
5
by
Cashsdad03 from
Great product
I bought this distributor as a part to a TBI to carb swap ... and it works Great. Fit like a factory original.... I highly recommend anyone buying Jegs brand products....
Date published: 2021-02-14
Rated 5 out of
5
by
RoyB from
Great product and price!
Installation and setup was easy. The advance curve is perfect for my SBC 327. The adjustable vacuum advance is a nice feature too.
Date published: 2021-02-09
What is the warranty on this Dist
The Jegs 555-40002 distributor is warranted for 1 year from date of purchase.
Date published: 2023-08-15
How many pins are on the ICM?
The Jegs 555-40002 distributor uses a 4-pin module.
Date published: 2023-06-22
Will it fit a 70 to 80 Chevy 400 cu. In?
The Jegs 555-40002 distributor will fit a 400 Chevy engine.
Date published: 2023-04-20
What is the total mechanical advance and total vacuum advance. Also, what springs installed?
The Jegs 555-40002 replacement distributor is same as stock timing.
Date published: 2023-02-14
So is the distributor drive gear mellonized like the stock gm distributors come with ? Erson Cams say the drive gear must be mellonized for my retro roller hydraulic cam in my small block Chevy .
The Jegs 555-40002 distributor comes with a steel gear.
Date published: 2023-03-16
Recommend spark plug gap for this distributor?
The Jegs 555-40002 distributor would use a gap of .045.
Date published: 2023-02-14
I have a 1994 chevy 5.7 converting to carb.instead of fuel injection,Will this fit?
Yes, this should fit your engine, you will need to make the attachments to the wiring harness.
Date published: 2018-12-04
will the factory tach in a 66 chevelle work with this distributor
Yes, if it is an electronic tach. This will not work with a cable driven tachometer.
Date published: 2018-10-01
